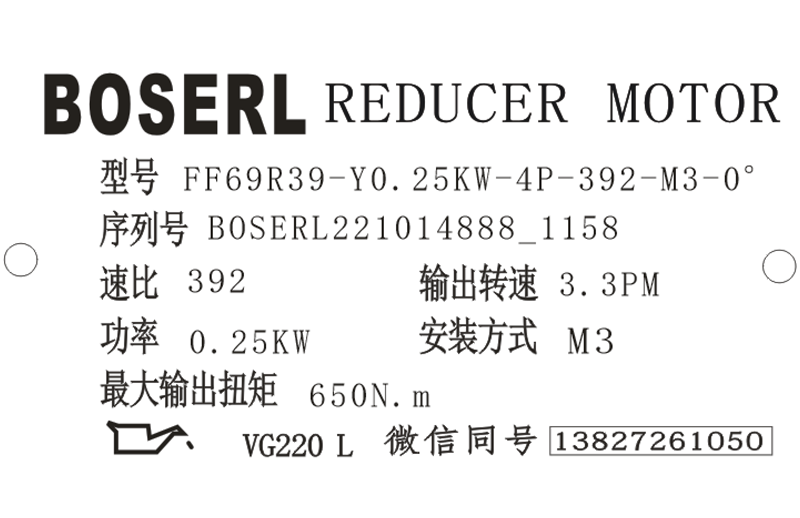

FF69R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF69R39減速機選型樣本。

FF69R39-Y0.25KW-4P-392-M3-0°

FF/R：系列代號

69/39：減速機規格代號

Y：電機

0.25KW：電機功率

4P：電機級數

392：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

FF69R39減速機電機操作注意事項

請在安裝使用電機前，仔細閱讀我司說明書，請遵照本說明書的指示，安全、正確地安裝、操作和維護電機。所有對電機或輔助設備進行安裝、操作或維護的人員必須注意，不按照本說明書指示操作，可能出現產品損壞及人身安全事故。剎車電機減速機

請按照接線圖確實地進行接線，否則有可能引起火災或觸電。請勿強行彎曲、扯拉或夾住導線，否則有可能引起火災或觸電。

停電時，請切斷電源，否則回復供電后電動機會突然啟動，有可能致傷或造成設備破損。

減速電機請勿在銘牌或制造規格書中的規格值范圍外使用。否則有可能會導致觸電、受傷、損壞裝置等情況。

請勿將手指或物品插入減速電機的開口部分。否則有可能會導致觸電、受傷、火災、損壞裝置等情況。

運轉時請勿碰觸旋轉部(出力軸、散熱風扇)，否則有可能致傷。請勿使用損壞的減速電機，否則有可能會導致受傷、火災等情況。請勿拆下銘牌。

請勿對電機進行拆解或改造，否則有可能引起觸電或致傷。客戶對產品的改造不屬于本公司的保證范圍，本公司將不承擔責任。平行軸斜齒輪減速機

FF69R39減速機電機質量標準：

執行標準：GB755-2008，GB12350-2009，GB14711-2013。備注：BOSERL常規產品型號在設計時，按電動機功率及允許承載能力的強度計算;按照每天連續運轉八小時，載荷穩定不變的理想工況設定在實際使用時，現場工況(如:是否有反復啟動停止或頻繁正反轉，使用時間是否少于或多于八小時，沖擊載荷大小及特性)可能與理想工況相差甚遠，在選型時應予充分考慮;若有其它特殊要求，請反饋我司，將重新設計以滿足需求。齒輪減速電機

FF69R39減速電機型號：

YQFF67R37-Y0.12KW，YQFF67R37-Y0.18KW，YQFF67R37-Y0.25KW，YQFF67R37-Y0.37KW，YQFF67R37-Y0.55KW，YQFF67R37-Y0.75KW，YQFF67R37-Y63M4，YQFF67R37-Y71M4，YQFF67R37-Y80M4，YQFF67RF37-Y63M4，YQFF67RF37-Y71M4，YQFF67RF37-Y80M4，YQFF67RF37-YB63M4，YQFF67RF37-YB71M4，YQFF67RF37-YB80M4，YQFF67RF37-YDP63M4，YQFF67RF37-YDP71M4，YQFF67RF37-YDP80M4，YQFF67RF37-YE63M4，YQFF67RF37-YE71M4，YQFF67RF37-YE80M4，YQFF67RF37-YEJ63M4，YQFF67RF37-YEJ71M4，YQFF67RF37-YEJ80M4，YQFF67RF37-YEJB63M4，YQFF67RF37-YEJB71M4，YQFF67RF37-YEJB80M4，YQFF67RF37-YP63M4，YQFF67RF37-YP71M4，YQFF67RF37-YP80M4，YQFF67RF37-YPB63M4，YQFF67RF37-YPB71M4，YQFF67RF37-YPB80M4，YQFF67RF37-YPE63M4，YQFF67RF37-YPE71M4，YQFF67RF37-YPE80M4，YQFF67RF37-YS63M4，YQFF67RF37-YS71M4，YQFF67RF37-YS80M4，YQFF67RF37-YVB63M4，YQFF67RF37-YVB71M4，YQFF67RF37-YVB80M4，YQFF67RF37-YVP63M4，YQFF67RF37-YVP71M4，YQFF67RF37-YVP80M4，YQFF67RF37-YVPEJ63M4，YQFF67RF37-YVPEJ71M4，YQFF67RF37-YVPEJ80M4，XDFF67R37-Y0.12KW，XDFF67R37-Y0.18KW，XDFF67R37-Y0.25KW，XDFF67R37-Y0.37KW，XDFF67R37-Y0.55KW，XDFF67R37-Y0.75KW，XDFF67R37-Y63M4，XDFF67R37-Y71M4，XDFF67R37-Y80M4，XDFF67RF37-Y63M4，XDFF67RF37-Y71M4，XDFF67RF37-Y80M4，XDFF67RF37-YB63M4，XDFF67RF37-YB71M4，XDFF67RF37-YB80M4，XDFF67RF37-YDP63M4，XDFF67RF37-YDP71M4，XDFF67RF37-YDP80M4，XDFF67RF37-YE63M4，XDFF67RF37-YE71M4，XDFF67RF37-YE80M4，XDFF67RF37-YEJ63M4，XDFF67RF37-YEJ71M4，XDFF67RF37-YEJ80M4，XDFF67RF37-YEJB63M4，XDFF67RF37-YEJB71M4，XDFF67RF37-YEJB80M4，XDFF67RF37-YP63M4，XDFF67RF37-YP71M4，XDFF67RF37-YP80M4，XDFF67RF37-YPB63M4，XDFF67RF37-YPB71M4，XDFF67RF37-YPB80M4，XDFF67RF37-YPE63M4，XDFF67RF37-YPE71M4，XDFF67RF37-YPE80M4，XDFF67RF37-YS63M4，XDFF67RF37-YS71M4，XDFF67RF37-YS80M4，XDFF67RF37-YVB63M4，XDFF67RF37-YVB71M4，XDFF67RF37-YVB80M4，XDFF67RF37-YVP63M4，XDFF67RF37-YVP71M4，XDFF67RF37-YVP80M4，XDFF67RF37-YVPEJ63M4，XDFF67RF37-YVPEJ71M4，XDFF67RF37-YVPEJ80M4，WFF67R37-Y0.12KW，WFF67R37-Y0.18KW，WFF67R37-Y0.25KW，WFF67R37-Y0.37KW，WFF67R37-Y0.55KW，WFF67R37-Y0.75KW，WFF67R37-Y63M4，WFF67R37-Y71M4，WFF67R37-Y80M4，WFF67RF37-Y63M4，WFF67RF37-Y71M4，WFF67RF37-Y80M4，WFF67RF37-YB63M4，WFF67RF37-YB71M4，WFF67RF37-YB80M4，WFF67RF37-YDP63M4，WFF67RF37-YDP71M4，WFF67RF37-YDP80M4，WFF67RF37-YE63M4，WFF67RF37-YE71M4，WFF67RF37-YE80M4，WFF67RF37-YEJ63M4，WFF67RF37-YEJ71M4，WFF67RF37-YEJ80M4，WFF67RF37-YEJB63M4，WFF67RF37-YEJB71M4，WFF67RF37-YEJB80M4，WFF67RF37-YP63M4，WFF67RF37-YP71M4，WFF67RF37-YP80M4，WFF67RF37-YPB63M4，WFF67RF37-YPB71M4，WFF67RF37-YPB80M4，WFF67RF37-YPE63M4，WFF67RF37-YPE71M4，WFF67RF37-YPE80M4，WFF67RF37-YS63M4，WFF67RF37-YS71M4，WFF67RF37-YS80M4，WFF67RF37-YVB63M4，WFF67RF37-YVB71M4，WFF67RF37-YVB80M4，WFF67RF37-YVP63M4，WFF67RF37-YVP71M4，WFF67RF37-YVP80M4，WFF67RF37-YVPEJ63M4，WFF67RF37-YVPEJ71M4，WFF67RF37-YVPEJ80M4，SFF67R37-Y0.12KW，SFF67R37-Y0.18KW，SFF67R37-Y0.25KW，SFF67R37-Y0.37KW，SFF67R37-Y0.55KW，SFF67R37-Y0.75KW，SFF67R37-Y63M4，SFF67R37-Y71M4，SFF67R37-Y80M4，SFF67RF37-Y63M4，SFF67RF37-Y71M4，SFF67RF37-Y80M4，SFF67RF37-YB63M4，SFF67RF37-YB71M4，SFF67RF37-YB80M4，SFF67RF37-YDP63M4，SFF67RF37-YDP71M4，SFF67RF37-YDP80M4，SFF67RF37-YE63M4，SFF67RF37-YE71M4，SFF67RF37-YE80M4，SFF67RF37-YEJ63M4，SFF67RF37-YEJ71M4，SFF67RF37-YEJ80M4，SFF67RF37-YEJB63M4，SFF67RF37-YEJB71M4，SFF67RF37-YEJB80M4，SFF67RF37-YP63M4，SFF67RF37-YP71M4，SFF67RF37-YP80M4，SFF67RF37-YPB63M4，SFF67RF37-YPB71M4，SFF67RF37-YPB80M4，SFF67RF37-YPE63M4，SFF67RF37-YPE71M4，SFF67RF37-YPE80M4，SFF67RF37-YS63M4，SFF67RF37-YS71M4，SFF67RF37-YS80M4，SFF67RF37-YVB63M4，SFF67RF37-YVB71M4，SFF67RF37-YVB80M4，SFF67RF37-YVP63M4，SFF67RF37-YVP71M4，SFF67RF37-YVP80M4，SFF67RF37-YVPEJ63M4，SFF67RF37-YVPEJ71M4，SFF67RF37-YVPEJ80M4，JCFF67R37-Y0.12KW，JCFF67R37-Y0.18KW，JCFF67R37-Y0.25KW，JCFF67R37-Y0.37KW，JCFF67R37-Y0.55KW，JCFF67R37-Y0.75KW，JCFF67R37-Y63M4，JCFF67R37-Y71M4，JCFF67R37-Y80M4，JCFF67RF37-Y63M4，JCFF67RF37-Y71M4，JCFF67RF37-Y80M4，JCFF67RF37-YB63M4，JCFF67RF37-YB71M4，JCFF67RF37-YB80M4，JCFF67RF37-YDP63M4，JCFF67RF37-YDP71M4，JCFF67RF37-YDP80M4，JCFF67RF37-YE63M4，JCFF67RF37-YE71M4，JCFF67RF37-YE80M4，JCFF67RF37-YEJ63M4，JCFF67RF37-YEJ71M4，JCFF67RF37-YEJ80M4，JCFF67RF37-YEJB63M4，JCFF67RF37-YEJB71M4，JCFF67RF37-YEJB80M4，JCFF67RF37-YP63M4，JCFF67RF37-YP71M4，JCFF67RF37-YP80M4，JCFF67RF37-YPB63M4，JCFF67RF37-YPB71M4，JCFF67RF37-YPB80M4，JCFF67RF37-YPE63M4，JCFF67RF37-YPE71M4，JCFF67RF37-YPE80M4，JCFF67RF37-YS63M4，JCFF67RF37-YS71M4，JCFF67RF37-YS80M4，JCFF67RF37-YVB63M4，JCFF67RF37-YVB71M4，JCFF67RF37-YVB80M4，JCFF67RF37-YVP63M4，JCFF67RF37-YVP71M4，JCFF67RF37-YVP80M4，JCFF67RF37-YVPEJ63M4，JCFF67RF37-YVPEJ71M4，JCFF67RF37-YVPEJ80M4，AFF67R37-Y0.12KW，AFF67R37-Y0.18KW，AFF67R37-Y0.25KW，AFF67R37-Y0.37KW，AFF67R37-Y0.55KW，AFF67R37-Y0.75KW，AFF67R37-Y63M4，AFF67R37-Y71M4，AFF67R37-Y80M4，AFF67RF37-Y63M4，AFF67RF37-Y71M4，AFF67RF37-Y80M4，AFF67RF37-YB63M4，AFF67RF37-YB71M4，AFF67RF37-YB80M4，AFF67RF37-YDP63M4，AFF67RF37-YDP71M4，AFF67RF37-YDP80M4，AFF67RF37-YE63M4，AFF67RF37-YE71M4，AFF67RF37-YE80M4，AFF67RF37-YEJ63M4，AFF67RF37-YEJ71M4，AFF67RF37-YEJ80M4，AFF67RF37-YEJB63M4，AFF67RF37-YEJB71M4，AFF67RF37-YEJB80M4，AFF67RF37-YP63M4，AFF67RF37-YP71M4，AFF67RF37-YP80M4，AFF67RF37-YPB63M4，AFF67RF37-YPB71M4，AFF67RF37-YPB80M4，AFF67RF37-YPE63M4，AFF67RF37-YPE71M4，AFF67RF37-YPE80M4，AFF67RF37-YS63M4，AFF67RF37-YS71M4，AFF67RF37-YS80M4，AFF67RF37-YVB63M4，AFF67RF37-YVB71M4，AFF67RF37-YVB80M4，AFF67RF37-YVP63M4，AFF67RF37-YVP71M4，AFF67RF37-YVP80M4，AFF67RF37-YVPEJ63M4，AFF67RF37-YVPEJ71M4，AFF67RF37-YVPEJ80M4，NFF67R37-Y0.12KW，NFF67R37-Y0.18KW，NFF67R37-Y0.25KW，NFF67R37-Y0.37KW，NFF67R37-Y0.55KW，NFF67R37-Y0.75KW，NFF67R37-Y63M4，NFF67R37-Y71M4，NFF67R37-Y80M4，NFF67RF37-Y63M4，NFF67RF37-Y71M4，NFF67RF37-Y80M4，NFF67RF37-YB63M4，NFF67RF37-YB71M4，NFF67RF37-YB80M4，NFF67RF37-YDP63M4，NFF67RF37-YDP71M4，NFF67RF37-YDP80M4，NFF67RF37-YE63M4，NFF67RF37-YE71M4，NFF67RF37-YE80M4，NFF67RF37-YEJ63M4，NFF67RF37-YEJ71M4，NFF67RF37-YEJ80M4，NFF67RF37-YEJB63M4，NFF67RF37-YEJB71M4，NFF67RF37-YEJB80M4，NFF67RF37-YP63M4，NFF67RF37-YP71M4，NFF67RF37-YP80M4，NFF67RF37-YPB63M4，NFF67RF37-YPB71M4，NFF67RF37-YPB80M4，NFF67RF37-YPE63M4，NFF67RF37-YPE71M4，NFF67RF37-YPE80M4，NFF67RF37-YS63M4，NFF67RF37-YS71M4，NFF67RF37-YS80M4，NFF67RF37-YVB63M4，NFF67RF37-YVB71M4，NFF67RF37-YVB80M4，NFF67RF37-YVP63M4，NFF67RF37-YVP71M4，NFF67RF37-YVP80M4，NFF67RF37-YVPEJ63M4，NFF67RF37-YVPEJ71M4，NFF67RF37-YVPEJ80M4，FWF67RW37-Y0.12KW，FWF67RW37-Y0.18KW，FWF67RW37-Y0.25KW，FWF67RW37-Y0.37KW，FWF67RW37-Y0.55KW，FWF67RW37-Y0.75KW，FWF67RW37-Y63M4，FWF67RW37-Y71M4，FWF67RW37-Y80M4，FWF67RWFF37-Y63M4，FWF67RWFF37-Y71M4，FWF67RWFF37-Y80M4，FWF67RWFF37-YB63M4，FWF67RWFF37-YB71M4，FWF67RWFF37-YB80M4，FWF67RWFF37-YDP63M4，FWF67RWFF37-YDP71M4，FWF67RWFF37-YDP80M4，FWF67RWFF37-YE63M4，FWF67RWFF37-YE71M4，FWF67RWFF37-YE80M4，FWF67RWFF37-YEJ63M4，FWF67RWFF37-YEJ71M4，FWF67RWFF37-YEJ80M4，FWF67RWFF37-YEJB63M4，FWF67RWFF37-YEJB71M4，FWF67RWFF37-YEJB80M4，FWF67RWFF37-YP63M4，FWF67RWFF37-YP71M4，FWF67RWFF37-YP80M4，FWF67RWFF37-YPB63M4，FWF67RWFF37-YPB71M4，FWF67RWFF37-YPB80M4，FWF67RWFF37-YPE63M4，FWF67RWFF37-YPE71M4，FWF67RWFF37-YPE80M4，FWF67RWFF37-YS63M4，FWF67RWFF37-YS71M4，FWF67RWFF37-YS80M4，FWF67RWFF37-YVB63M4，FWF67RWFF37-YVB71M4，FWF67RWFF37-YVB80M4，FWF67RWFF37-YVP63M4，FWF67RWFF37-YVP71M4，FWF67RWFF37-YVP80M4，FWF67RWFF37-YVPEJ63M4，FWF67RWFF37-YVPEJ71M4，FWF67RWFF37-YVPEJ80M4，FF69R39-Y0.12KW，FF69R39-Y0.18KW，FF69R39-Y0.25KW，FF69R39-Y0.39KW，FF69R39-Y0.55KW，FF69R39-Y0.75KW，FF69R39-Y63M4，FF69R39-Y71M4，FF69R39-Y80M4，FF69RF39-Y63M4，FF69RF39-Y71M4，FF69RF39-Y80M4，FF69RF39-YB63M4，FF69RF39-YB71M4，FF69RF39-YB80M4，FF69RF39-YDP63M4，FF69RF39-YDP71M4，FF69RF39-YDP80M4，FF69RF39-YE63M4，FF69RF39-YE71M4，FF69RF39-YE80M4，FF69RF39-YEJ63M4，FF69RF39-YEJ71M4，FF69RF39-YEJ80M4，FF69RF39-YEJB63M4，FF69RF39-YEJB71M4，FF69RF39-YEJB80M4，FF69RF39-YP63M4，FF69RF39-YP71M4，FF69RF39-YP80M4，FF69RF39-YPB63M4，FF69RF39-YPB71M4，FF69RF39-YPB80M4，FF69RF39-YPE63M4，FF69RF39-YPE71M4，FF69RF39-YPE80M4，FF69RF39-YS63M4，FF69RF39-YS71M4，FF69RF39-YS80M4，FF69RF39-YVB63M4，FF69RF39-YVB71M4，FF69RF39-YVB80M4，FF69RF39-YVP63M4，FF69RF39-YVP71M4，FF69RF39-YVP80M4，FF69RF39-YVPEJ63M4，FF69RF39-YVPEJ71M4，FF69RF39-YVPEJ80M4。

FF69R39減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.yayuyw.com/product/list-ffxiliejiansuji-cn.html

推薦型號：F69減速機
