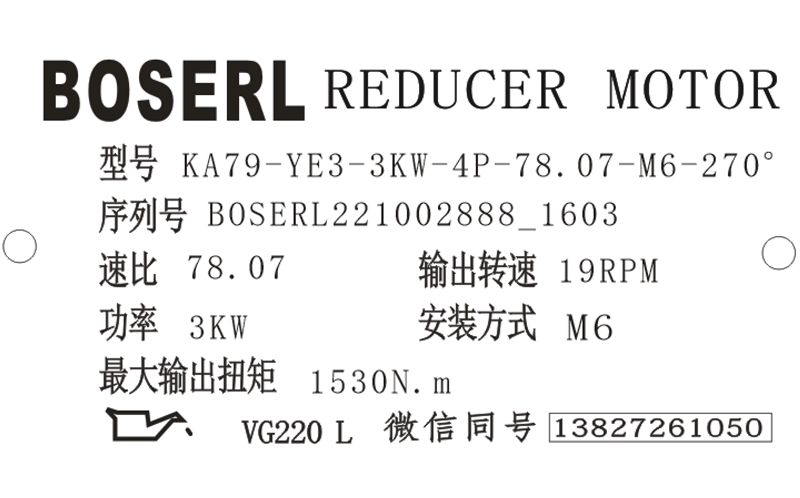

KA79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA79減速機選型樣本。

KA79-YE3-3KW-4P-78.07-M6-270°

KA：系列代號

79：減速機規格代號

YE3：電機

3KW：電機功率

4P：電機級數

78.07：減速機傳動比

M6：減速機安裝位置

270°：接線盒位置

KA79減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA79減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA79減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA79減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA79減速機型號：

WKA77-Y0.25SKA，WKA77-Y0.37SKA，WKA77-Y0.55SKA，WKA77-Y0.75SKA，WKA77-Y1.1SKA，WKA77-Y1.5SKA，WKA77-Y100M4，WKA77-Y112M4，WKA77-Y11SKA，WKA77-Y132M4，WKA77-Y160M4，WKA77-Y2.2SKA，WKA77-Y3SKA，WKA77-Y4SKA，WKA77-Y5.5SKA，WKA77-Y7.5SKA，WKA77-Y71M4，WKA77-Y80M4，WKA77-Y90M4，WKA77-YB100M4，WKA77-YB112M4，WKA77-YB132M4，WKA77-YB160M4，WKA77-YB71M4，WKA77-YB80M4，WKA77-YB90M4，WKA77-YDP100M4，WKA77-YDP112M4，WKA77-YDP132M4，WKA77-YDP160M4，WKA77-YDP71M4，WKA77-YDP80M4，WKA77-YDP90M4，WKA77-YE100M4，WKA77-YE112M4，WKA77-YE132M4，WKA77-YE160M4，WKA77-YE71M4，WKA77-YE80M4，WKA77-YE90M4，WKA77-YEJ100M4，WKA77-YEJ112M4，WKA77-YEJ132M4，WKA77-YEJ160M4，WKA77-YEJ71M4，WKA77-YEJ80M4，WKA77-YEJ90M4，WKA77-YEJB100M4，WKA77-YEJB112M4，WKA77-YEJB132M4，WKA77-YEJB160M4，WKA77-YEJB71M4，WKA77-YEJB80M4，WKA77-YEJB90M4，WKA77-YP100M4，WKA77-YP112M4，WKA77-YP132M4，WKA77-YP160M4，WKA77-YP71M4，WKA77-YP80M4，WKA77-YP90M4，WKA77-YPB100M4，WKA77-YPB112M4，WKA77-YPB132M4，WKA77-YPB160M4，WKA77-YPB71M4，WKA77-YPB80M4，WKA77-YPB90M4，WKA77-YPE100M4，WKA77-YPE112M4，WKA77-YPE132M4，WKA77-YPE160M4，WKA77-YPE71M4，WKA77-YPE80M4，WKA77-YPE90M4，WKA77-YS100M4，WKA77-YS112M4，WKA77-YS132M4，WKA77-YS160M4，WKA77-YS71M4，WKA77-YS80M4，WKA77-YS90M4，WKA77-YVB100M4，WKA77-YVB112M4，WKA77-YVB132M4，WKA77-YVB160M4，WKA77-YVB71M4，WKA77-YVB80M4，WKA77-YVB90M4，WKA77-YVP100M4，WKA77-YVP112M4，WKA77-YVP132M4，WKA77-YVP160M4，WKA77-YVP71M4，WKA77-YVP80M4，WKA77-YVP90M4，WKA77-YVPEJ100M4，WKA77-YVPEJ112M4，WKA77-YVPEJ132M4，WKA77-YVPEJ160M4，WKA77-YVPEJ71M4，WKA77-YVPEJ80M4，WKA77-YVPEJ90M4，AKA77-Y0.25SKA，AKA77-Y0.37SKA，AKA77-Y0.55SKA，AKA77-Y0.75SKA，AKA77-Y1.1SKA，AKA77-Y1.5SKA，AKA77-Y100M4，AKA77-Y112M4，AKA77-Y11SKA，AKA77-Y132M4，AKA77-Y160M4，AKA77-Y2.2SKA，AKA77-Y3SKA，AKA77-Y4SKA，AKA77-Y5.5SKA，AKA77-Y7.5SKA，AKA77-Y71M4，AKA77-Y80M4，AKA77-Y90M4，AKA77-YB100M4，AKA77-YB112M4，AKA77-YB132M4，AKA77-YB160M4，AKA77-YB71M4，AKA77-YB80M4，AKA77-YB90M4，AKA77-YDP100M4，AKA77-YDP112M4，AKA77-YDP132M4，AKA77-YDP160M4，AKA77-YDP71M4，AKA77-YDP80M4，AKA77-YDP90M4，AKA77-YE100M4，AKA77-YE112M4，AKA77-YE132M4，AKA77-YE160M4，AKA77-YE71M4，AKA77-YE80M4，AKA77-YE90M4，AKA77-YEJ100M4，AKA77-YEJ112M4，AKA77-YEJ132M4，AKA77-YEJ160M4，AKA77-YEJ71M4，AKA77-YEJ80M4，AKA77-YEJ90M4，AKA77-YEJB100M4，AKA77-YEJB112M4，AKA77-YEJB132M4，AKA77-YEJB160M4，AKA77-YEJB71M4，AKA77-YEJB80M4，AKA77-YEJB90M4，AKA77-YP100M4，AKA77-YP112M4，AKA77-YP132M4，AKA77-YP160M4，AKA77-YP71M4，AKA77-YP80M4，AKA77-YP90M4，AKA77-YPB100M4，AKA77-YPB112M4，AKA77-YPB132M4，AKA77-YPB160M4，AKA77-YPB71M4，AKA77-YPB80M4，AKA77-YPB90M4，AKA77-YPE100M4，AKA77-YPE112M4，AKA77-YPE132M4，AKA77-YPE160M4，AKA77-YPE71M4，AKA77-YPE80M4，AKA77-YPE90M4，AKA77-YS100M4，AKA77-YS112M4，AKA77-YS132M4，AKA77-YS160M4，AKA77-YS71M4，AKA77-YS80M4，AKA77-YS90M4，AKA77-YVB100M4，AKA77-YVB112M4，AKA77-YVB132M4，AKA77-YVB160M4，AKA77-YVB71M4，AKA77-YVB80M4，AKA77-YVB90M4，AKA77-YVP100M4，AKA77-YVP112M4，AKA77-YVP132M4，AKA77-YVP160M4，AKA77-YVP71M4，AKA77-YVP80M4，AKA77-YVP90M4，AKA77-YVPEJ100M4，AKA77-YVPEJ112M4，AKA77-YVPEJ132M4，AKA77-YVPEJ160M4，AKA77-YVPEJ71M4，AKA77-YVPEJ80M4，AKA77-YVPEJ90M4，NKA77-Y0.25SKA，NKA77-Y0.37SKA，NKA77-Y0.55SKA，NKA77-Y0.75SKA，NKA77-Y1.1SKA，NKA77-Y1.5SKA，NKA77-Y100M4，NKA77-Y112M4，NKA77-Y11SKA，NKA77-Y132M4，NKA77-Y160M4，NKA77-Y2.2SKA，NKA77-Y3SKA，NKA77-Y4SKA，NKA77-Y5.5SKA，NKA77-Y7.5SKA，NKA77-Y71M4，NKA77-Y80M4，NKA77-Y90M4，NKA77-YB100M4，NKA77-YB112M4，NKA77-YB132M4，NKA77-YB160M4，NKA77-YB71M4，NKA77-YB80M4，NKA77-YB90M4，NKA77-YDP100M4，NKA77-YDP112M4，NKA77-YDP132M4，NKA77-YDP160M4，NKA77-YDP71M4，NKA77-YDP80M4，NKA77-YDP90M4，NKA77-YE100M4，NKA77-YE112M4，NKA77-YE132M4，NKA77-YE160M4，NKA77-YE71M4，NKA77-YE80M4，NKA77-YE90M4，NKA77-YEJ100M4，NKA77-YEJ112M4，NKA77-YEJ132M4，NKA77-YEJ160M4，NKA77-YEJ71M4，NKA77-YEJ80M4，NKA77-YEJ90M4，NKA77-YEJB100M4，NKA77-YEJB112M4，NKA77-YEJB132M4，NKA77-YEJB160M4，NKA77-YEJB71M4，NKA77-YEJB80M4，NKA77-YEJB90M4，NKA77-YP100M4，NKA77-YP112M4，NKA77-YP132M4，NKA77-YP160M4，NKA77-YP71M4，NKA77-YP80M4，NKA77-YP90M4，NKA77-YPB100M4，NKA77-YPB112M4，NKA77-YPB132M4，NKA77-YPB160M4，NKA77-YPB71M4，NKA77-YPB80M4，NKA77-YPB90M4，NKA77-YPE100M4，NKA77-YPE112M4，NKA77-YPE132M4，NKA77-YPE160M4，NKA77-YPE71M4，NKA77-YPE80M4，NKA77-YPE90M4，NKA77-YS100M4，NKA77-YS112M4，NKA77-YS132M4，NKA77-YS160M4，NKA77-YS71M4，NKA77-YS80M4，NKA77-YS90M4，NKA77-YVB100M4，NKA77-YVB112M4，NKA77-YVB132M4，NKA77-YVB160M4，NKA77-YVB71M4，NKA77-YVB80M4，NKA77-YVB90M4，NKA77-YVP100M4，NKA77-YVP112M4，NKA77-YVP132M4，NKA77-YVP160M4，NKA77-YVP71M4，NKA77-YVP80M4，NKA77-YVP90M4，NKA77-YVPEJ100M4，NKA77-YVPEJ112M4，NKA77-YVPEJ132M4，NKA77-YVPEJ160M4，NKA77-YVPEJ71M4，NKA77-YVPEJ80M4，NKA77-YVPEJ90M4，SKA77-Y0.25SKA，SKA77-Y0.37SKA，SKA77-Y0.55SKA，SKA77-Y0.75SKA，SKA77-Y1.1SKA，SKA77-Y1.5SKA，SKA77-Y100M4，SKA77-Y112M4，SKA77-Y11SKA，SKA77-Y132M4，SKA77-Y160M4，SKA77-Y2.2SKA，SKA77-Y3SKA，SKA77-Y4SKA，SKA77-Y5.5SKA，SKA77-Y7.5SKA，SKA77-Y71M4，SKA77-Y80M4，SKA77-Y90M4，SKA77-YB100M4，SKA77-YB112M4，SKA77-YB132M4，SKA77-YB160M4，SKA77-YB71M4，SKA77-YB80M4，SKA77-YB90M4，SKA77-YDP100M4，SKA77-YDP112M4，SKA77-YDP132M4，SKA77-YDP160M4，SKA77-YDP71M4，SKA77-YDP80M4，SKA77-YDP90M4，SKA77-YE100M4，SKA77-YE112M4，SKA77-YE132M4，SKA77-YE160M4，SKA77-YE71M4，SKA77-YE80M4，SKA77-YE90M4，SKA77-YEJ100M4，SKA77-YEJ112M4，SKA77-YEJ132M4，SKA77-YEJ160M4，SKA77-YEJ71M4，SKA77-YEJ80M4，SKA77-YEJ90M4，SKA77-YEJB100M4，SKA77-YEJB112M4，SKA77-YEJB132M4，SKA77-YEJB160M4，SKA77-YEJB71M4，SKA77-YEJB80M4，SKA77-YEJB90M4，SKA77-YP100M4，SKA77-YP112M4，SKA77-YP132M4，SKA77-YP160M4，SKA77-YP71M4，SKA77-YP80M4，SKA77-YP90M4，SKA77-YPB100M4，SKA77-YPB112M4，SKA77-YPB132M4，SKA77-YPB160M4，SKA77-YPB71M4，SKA77-YPB80M4，SKA77-YPB90M4，SKA77-YPE100M4，SKA77-YPE112M4，SKA77-YPE132M4，SKA77-YPE160M4，SKA77-YPE71M4，SKA77-YPE80M4，SKA77-YPE90M4，SKA77-YS100M4，SKA77-YS112M4，SKA77-YS132M4，SKA77-YS160M4，SKA77-YS71M4，SKA77-YS80M4，SKA77-YS90M4，SKA77-YVB100M4，SKA77-YVB112M4，SKA77-YVB132M4，SKA77-YVB160M4，SKA77-YVB71M4，SKA77-YVB80M4，SKA77-YVB90M4，SKA77-YVP100M4，SKA77-YVP112M4，SKA77-YVP132M4，SKA77-YVP160M4，SKA77-YVP71M4，SKA77-YVP80M4，SKA77-YVP90M4，SKA77-YVPEJ100M4，SKA77-YVPEJ112M4，SKA77-YVPEJ132M4，SKA77-YVPEJ160M4，SKA77-YVPEJ71M4，SKA77-YVPEJ80M4，SKA77-YVPEJ90M4，GKA79-Y0.25SKA，GKA79-Y0.37SKA，GKA79-Y0.55SKA，GKA79-Y0.75SKA，GKA79-Y1.1SKA，GKA79-Y1.5SKA，GKA79-Y100M4，GKA79-Y112M4，GKA79-Y11SKA，GKA79-Y132M4，GKA79-Y160M4，GKA79-Y2.2SKA，GKA79-Y3SKA，GKA79-Y4SKA，GKA79-Y5.5SKA，GKA79-Y7.5SKA，GKA79-Y71M4，GKA79-Y80M4，GKA79-Y90M4，GKA79-YB100M4，GKA79-YB112M4，GKA79-YB132M4，GKA79-YB160M4，GKA79-YB71M4，GKA79-YB80M4，GKA79-YB90M4，GKA79-YDP100M4，GKA79-YDP112M4，GKA79-YDP132M4，GKA79-YDP160M4，GKA79-YDP71M4，GKA79-YDP80M4，GKA79-YDP90M4，GKA79-YE100M4，GKA79-YE112M4，GKA79-YE132M4，GKA79-YE160M4，GKA79-YE71M4，GKA79-YE80M4，GKA79-YE90M4，GKA79-YEJ100M4，GKA79-YEJ112M4，GKA79-YEJ132M4，GKA79-YEJ160M4，GKA79-YEJ71M4，GKA79-YEJ80M4，GKA79-YEJ90M4，GKA79-YEJB100M4，GKA79-YEJB112M4，GKA79-YEJB132M4，GKA79-YEJB160M4，GKA79-YEJB71M4，GKA79-YEJB80M4，GKA79-YEJB90M4，GKA79-YP100M4，GKA79-YP112M4，GKA79-YP132M4，GKA79-YP160M4，GKA79-YP71M4，GKA79-YP80M4，GKA79-YP90M4，GKA79-YPB100M4，GKA79-YPB112M4，GKA79-YPB132M4，GKA79-YPB160M4，GKA79-YPB71M4，GKA79-YPB80M4，GKA79-YPB90M4，GKA79-YPE100M4，GKA79-YPE112M4，GKA79-YPE132M4，GKA79-YPE160M4，GKA79-YPE71M4，GKA79-YPE80M4，GKA79-YPE90M4，GKA79-YS100M4，GKA79-YS112M4，GKA79-YS132M4，GKA79-YS160M4，GKA79-YS71M4，GKA79-YS80M4，GKA79-YS90M4，GKA79-YVB100M4，GKA79-YVB112M4，GKA79-YVB132M4，GKA79-YVB160M4，GKA79-YVB71M4，GKA79-YVB80M4，GKA79-YVB90M4，GKA79-YVP100M4，GKA79-YVP112M4，GKA79-YVP132M4，GKA79-YVP160M4，GKA79-YVP71M4，GKA79-YVP80M4，GKA79-YVP90M4，GKA79-YVPEJ100M4，GKA79-YVPEJ112M4，GKA79-YVPEJ132M4，GKA79-YVPEJ160M4，GKA79-YVPEJ71M4，GKA79-YVPEJ80M4，GKA79-YVPEJ90M4。

KA79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.yayuyw.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K79減速機
