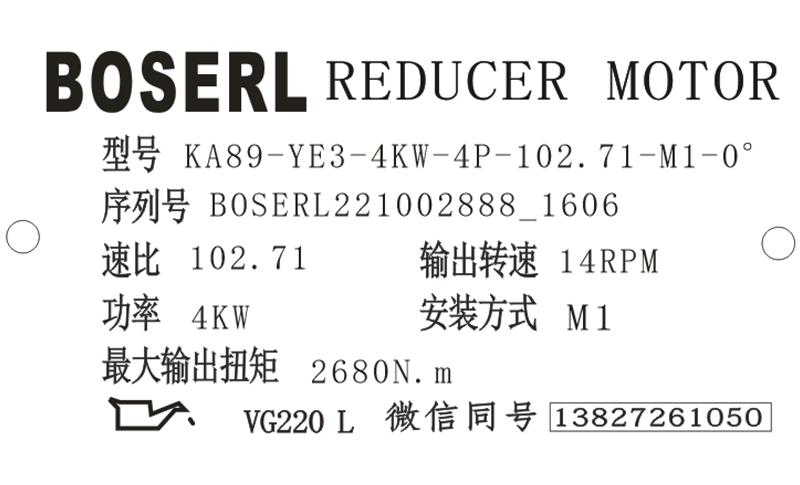

KA89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA89減速機選型樣本。

KA89-YE3-4KW-4P-102.71-M1-0°

KA：系列代號

89：減速機規格代號

YE3：電機

4KW：電機功率

4P：電機級數

102.71：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

KA89減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA89減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA89減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA89減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA89減速機型號：

WKA87-Y0.37SKA，WKA87-Y0.55SKA，WKA87-Y0.75SKA，WKA87-Y1.1SKA，WKA87-Y1.5SKA，WKA87-Y100M4，WKA87-Y112M4，WKA87-Y11SKA，WKA87-Y132M4，WKA87-Y15SKA，WKA87-Y160M4，WKA87-Y18.5SKA，WKA87-Y180M4，WKA87-Y2.2SKA，WKA87-Y200M4，WKA87-Y22SKA，WKA87-Y3SKA，WKA87-Y4SKA，WKA87-Y5.5SKA，WKA87-Y7.5SKA，WKA87-Y71M4，WKA87-Y80M4，WKA87-Y90M4，WKA87-YB100M4，WKA87-YB112M4，WKA87-YB132M4，WKA87-YB160M4，WKA87-YB180M4，WKA87-YB200M4，WKA87-YB71M4，WKA87-YB80M4，WKA87-YB90M4，WKA87-YDP100M4，WKA87-YDP112M4，WKA87-YDP132M4，WKA87-YDP160M4，WKA87-YDP180M4，WKA87-YDP200M4，WKA87-YDP71M4，WKA87-YDP80M4，WKA87-YDP90M4，WKA87-YE100M4，WKA87-YE112M4，WKA87-YE132M4，WKA87-YE160M4，WKA87-YE180M4，WKA87-YE200M4，WKA87-YE71M4，WKA87-YE80M4，WKA87-YE90M4，WKA87-YEJ100M4，WKA87-YEJ112M4，WKA87-YEJ132M4，WKA87-YEJ160M4，WKA87-YEJ180M4，WKA87-YEJ200M4，WKA87-YEJ71M4，WKA87-YEJ80M4，WKA87-YEJ90M4，WKA87-YEJB100M4，WKA87-YEJB112M4，WKA87-YEJB132M4，WKA87-YEJB160M4，WKA87-YEJB180M4，WKA87-YEJB200M4，WKA87-YEJB71M4，WKA87-YEJB80M4，WKA87-YEJB90M4，WKA87-YP100M4，WKA87-YP112M4，WKA87-YP132M4，WKA87-YP160M4，WKA87-YP180M4，WKA87-YP200M4，WKA87-YP71M4，WKA87-YP80M4，WKA87-YP90M4，WKA87-YPB100M4，WKA87-YPB112M4，WKA87-YPB132M4，WKA87-YPB160M4，WKA87-YPB180M4，WKA87-YPB200M4，WKA87-YPB71M4，WKA87-YPB80M4，WKA87-YPB90M4，WKA87-YPE100M4，WKA87-YPE112M4，WKA87-YPE132M4，WKA87-YPE160M4，WKA87-YPE180M4，WKA87-YPE200M4，WKA87-YPE71M4，WKA87-YPE80M4，WKA87-YPE90M4，WKA87-YS100M4，WKA87-YS112M4，WKA87-YS132M4，WKA87-YS160M4，WKA87-YS180M4，WKA87-YS200M4，WKA87-YS71M4，WKA87-YS80M4，WKA87-YS90M4，WKA87-YVB100M4，WKA87-YVB112M4，WKA87-YVB132M4，WKA87-YVB160M4，WKA87-YVB180M4，WKA87-YVB200M4，WKA87-YVB71M4，WKA87-YVB80M4，WKA87-YVB90M4，WKA87-YVP100M4，WKA87-YVP112M4，WKA87-YVP132M4，WKA87-YVP160M4，WKA87-YVP180M4，WKA87-YVP200M4，WKA87-YVP71M4，WKA87-YVP80M4，WKA87-YVP90M4，WKA87-YVPEJ100M4，WKA87-YVPEJ112M4，WKA87-YVPEJ132M4，WKA87-YVPEJ160M4，WKA87-YVPEJ180M4，WKA87-YVPEJ200M4，WKA87-YVPEJ71M4，WKA87-YVPEJ80M4，WKA87-YVPEJ90M4，AKA87-Y0.37SKA，AKA87-Y0.55SKA，AKA87-Y0.75SKA，AKA87-Y1.1SKA，AKA87-Y1.5SKA，AKA87-Y100M4，AKA87-Y112M4，AKA87-Y11SKA，AKA87-Y132M4，AKA87-Y15SKA，AKA87-Y160M4，AKA87-Y18.5SKA，AKA87-Y180M4，AKA87-Y2.2SKA，AKA87-Y200M4，AKA87-Y22SKA，AKA87-Y3SKA，AKA87-Y4SKA，AKA87-Y5.5SKA，AKA87-Y7.5SKA，AKA87-Y71M4，AKA87-Y80M4，AKA87-Y90M4，AKA87-YB100M4，AKA87-YB112M4，AKA87-YB132M4，AKA87-YB160M4，AKA87-YB180M4，AKA87-YB200M4，AKA87-YB71M4，AKA87-YB80M4，AKA87-YB90M4，AKA87-YDP100M4，AKA87-YDP112M4，AKA87-YDP132M4，AKA87-YDP160M4，AKA87-YDP180M4，AKA87-YDP200M4，AKA87-YDP71M4，AKA87-YDP80M4，AKA87-YDP90M4，AKA87-YE100M4，AKA87-YE112M4，AKA87-YE132M4，AKA87-YE160M4，AKA87-YE180M4，AKA87-YE200M4，AKA87-YE71M4，AKA87-YE80M4，AKA87-YE90M4，AKA87-YEJ100M4，AKA87-YEJ112M4，AKA87-YEJ132M4，AKA87-YEJ160M4，AKA87-YEJ180M4，AKA87-YEJ200M4，AKA87-YEJ71M4，AKA87-YEJ80M4，AKA87-YEJ90M4，AKA87-YEJB100M4，AKA87-YEJB112M4，AKA87-YEJB132M4，AKA87-YEJB160M4，AKA87-YEJB180M4，AKA87-YEJB200M4，AKA87-YEJB71M4，AKA87-YEJB80M4，AKA87-YEJB90M4，AKA87-YP100M4，AKA87-YP112M4，AKA87-YP132M4，AKA87-YP160M4，AKA87-YP180M4，AKA87-YP200M4，AKA87-YP71M4，AKA87-YP80M4，AKA87-YP90M4，AKA87-YPB100M4，AKA87-YPB112M4，AKA87-YPB132M4，AKA87-YPB160M4，AKA87-YPB180M4，AKA87-YPB200M4，AKA87-YPB71M4，AKA87-YPB80M4，AKA87-YPB90M4，AKA87-YPE100M4，AKA87-YPE112M4，AKA87-YPE132M4，AKA87-YPE160M4，AKA87-YPE180M4，AKA87-YPE200M4，AKA87-YPE71M4，AKA87-YPE80M4，AKA87-YPE90M4，AKA87-YS100M4，AKA87-YS112M4，AKA87-YS132M4，AKA87-YS160M4，AKA87-YS180M4，AKA87-YS200M4，AKA87-YS71M4，AKA87-YS80M4，AKA87-YS90M4，AKA87-YVB100M4，AKA87-YVB112M4，AKA87-YVB132M4，AKA87-YVB160M4，AKA87-YVB180M4，AKA87-YVB200M4，AKA87-YVB71M4，AKA87-YVB80M4，AKA87-YVB90M4，AKA87-YVP100M4，AKA87-YVP112M4，AKA87-YVP132M4，AKA87-YVP160M4，AKA87-YVP180M4，AKA87-YVP200M4，AKA87-YVP71M4，AKA87-YVP80M4，AKA87-YVP90M4，AKA87-YVPEJ100M4，AKA87-YVPEJ112M4，AKA87-YVPEJ132M4，AKA87-YVPEJ160M4，AKA87-YVPEJ180M4，AKA87-YVPEJ200M4，AKA87-YVPEJ71M4，AKA87-YVPEJ80M4，AKA87-YVPEJ90M4，NKA87-Y0.37SKA，NKA87-Y0.55SKA，NKA87-Y0.75SKA，NKA87-Y1.1SKA，NKA87-Y1.5SKA，NKA87-Y100M4，NKA87-Y112M4，NKA87-Y11SKA，NKA87-Y132M4，NKA87-Y15SKA，NKA87-Y160M4，NKA87-Y18.5SKA，NKA87-Y180M4，NKA87-Y2.2SKA，NKA87-Y200M4，NKA87-Y22SKA，NKA87-Y3SKA，NKA87-Y4SKA，NKA87-Y5.5SKA，NKA87-Y7.5SKA，NKA87-Y71M4，NKA87-Y80M4，NKA87-Y90M4，NKA87-YB100M4，NKA87-YB112M4，NKA87-YB132M4，NKA87-YB160M4，NKA87-YB180M4，NKA87-YB200M4，NKA87-YB71M4，NKA87-YB80M4，NKA87-YB90M4，NKA87-YDP100M4，NKA87-YDP112M4，NKA87-YDP132M4，NKA87-YDP160M4，NKA87-YDP180M4，NKA87-YDP200M4，NKA87-YDP71M4，NKA87-YDP80M4，NKA87-YDP90M4，NKA87-YE100M4，NKA87-YE112M4，NKA87-YE132M4，NKA87-YE160M4，NKA87-YE180M4，NKA87-YE200M4，NKA87-YE71M4，NKA87-YE80M4，NKA87-YE90M4，NKA87-YEJ100M4，NKA87-YEJ112M4，NKA87-YEJ132M4，NKA87-YEJ160M4，NKA87-YEJ180M4，NKA87-YEJ200M4，NKA87-YEJ71M4，NKA87-YEJ80M4，NKA87-YEJ90M4，NKA87-YEJB100M4，NKA87-YEJB112M4，NKA87-YEJB132M4，NKA87-YEJB160M4，NKA87-YEJB180M4，NKA87-YEJB200M4，NKA87-YEJB71M4，NKA87-YEJB80M4，NKA87-YEJB90M4，NKA87-YP100M4，NKA87-YP112M4，NKA87-YP132M4，NKA87-YP160M4，NKA87-YP180M4，NKA87-YP200M4，NKA87-YP71M4，NKA87-YP80M4，NKA87-YP90M4，NKA87-YPB100M4，NKA87-YPB112M4，NKA87-YPB132M4，NKA87-YPB160M4，NKA87-YPB180M4，NKA87-YPB200M4，NKA87-YPB71M4，NKA87-YPB80M4，NKA87-YPB90M4，NKA87-YPE100M4，NKA87-YPE112M4，NKA87-YPE132M4，NKA87-YPE160M4，NKA87-YPE180M4，NKA87-YPE200M4，NKA87-YPE71M4，NKA87-YPE80M4，NKA87-YPE90M4，NKA87-YS100M4，NKA87-YS112M4，NKA87-YS132M4，NKA87-YS160M4，NKA87-YS180M4，NKA87-YS200M4，NKA87-YS71M4，NKA87-YS80M4，NKA87-YS90M4，NKA87-YVB100M4，NKA87-YVB112M4，NKA87-YVB132M4，NKA87-YVB160M4，NKA87-YVB180M4，NKA87-YVB200M4，NKA87-YVB71M4，NKA87-YVB80M4，NKA87-YVB90M4，NKA87-YVP100M4，NKA87-YVP112M4，NKA87-YVP132M4，NKA87-YVP160M4，NKA87-YVP180M4，NKA87-YVP200M4，NKA87-YVP71M4，NKA87-YVP80M4，NKA87-YVP90M4，NKA87-YVPEJ100M4，NKA87-YVPEJ112M4，NKA87-YVPEJ132M4，NKA87-YVPEJ160M4，NKA87-YVPEJ180M4，NKA87-YVPEJ200M4，NKA87-YVPEJ71M4，NKA87-YVPEJ80M4，NKA87-YVPEJ90M4，SKA87-Y0.37SKA，SKA87-Y0.55SKA，SKA87-Y0.75SKA，SKA87-Y1.1SKA，SKA87-Y1.5SKA，SKA87-Y100M4，SKA87-Y112M4，SKA87-Y11SKA，SKA87-Y132M4，SKA87-Y15SKA，SKA87-Y160M4，SKA87-Y18.5SKA，SKA87-Y180M4，SKA87-Y2.2SKA，SKA87-Y200M4，SKA87-Y22SKA，SKA87-Y3SKA，SKA87-Y4SKA，SKA87-Y5.5SKA，SKA87-Y7.5SKA，SKA87-Y71M4，SKA87-Y80M4，SKA87-Y90M4，SKA87-YB100M4，SKA87-YB112M4，SKA87-YB132M4，SKA87-YB160M4，SKA87-YB180M4，SKA87-YB200M4，SKA87-YB71M4，SKA87-YB80M4，SKA87-YB90M4，SKA87-YDP100M4，SKA87-YDP112M4，SKA87-YDP132M4，SKA87-YDP160M4，SKA87-YDP180M4，SKA87-YDP200M4，SKA87-YDP71M4，SKA87-YDP80M4，SKA87-YDP90M4，SKA87-YE100M4，SKA87-YE112M4，SKA87-YE132M4，SKA87-YE160M4，SKA87-YE180M4，SKA87-YE200M4，SKA87-YE71M4，SKA87-YE80M4，SKA87-YE90M4，SKA87-YEJ100M4，SKA87-YEJ112M4，SKA87-YEJ132M4，SKA87-YEJ160M4，SKA87-YEJ180M4，SKA87-YEJ200M4，SKA87-YEJ71M4，SKA87-YEJ80M4，SKA87-YEJ90M4，SKA87-YEJB100M4，SKA87-YEJB112M4，SKA87-YEJB132M4，SKA87-YEJB160M4，SKA87-YEJB180M4，SKA87-YEJB200M4，SKA87-YEJB71M4，SKA87-YEJB80M4，SKA87-YEJB90M4，SKA87-YP100M4，SKA87-YP112M4，SKA87-YP132M4，SKA87-YP160M4，SKA87-YP180M4，SKA87-YP200M4，SKA87-YP71M4，SKA87-YP80M4，SKA87-YP90M4，SKA87-YPB100M4，SKA87-YPB112M4，SKA87-YPB132M4，SKA87-YPB160M4，SKA87-YPB180M4，SKA87-YPB200M4，SKA87-YPB71M4，SKA87-YPB80M4，SKA87-YPB90M4，SKA87-YPE100M4，SKA87-YPE112M4，SKA87-YPE132M4，SKA87-YPE160M4，SKA87-YPE180M4，SKA87-YPE200M4，SKA87-YPE71M4，SKA87-YPE80M4，SKA87-YPE90M4，SKA87-YS100M4，SKA87-YS112M4，SKA87-YS132M4，SKA87-YS160M4，SKA87-YS180M4，SKA87-YS200M4，SKA87-YS71M4，SKA87-YS80M4，SKA87-YS90M4，SKA87-YVB100M4，SKA87-YVB112M4，SKA87-YVB132M4，SKA87-YVB160M4，SKA87-YVB180M4，SKA87-YVB200M4，SKA87-YVB71M4，SKA87-YVB80M4，SKA87-YVB90M4，SKA87-YVP100M4，SKA87-YVP112M4，SKA87-YVP132M4，SKA87-YVP160M4，SKA87-YVP180M4，SKA87-YVP200M4，SKA87-YVP71M4，SKA87-YVP80M4，SKA87-YVP90M4，SKA87-YVPEJ100M4，SKA87-YVPEJ112M4，SKA87-YVPEJ132M4，SKA87-YVPEJ160M4，SKA87-YVPEJ180M4，SKA87-YVPEJ200M4，SKA87-YVPEJ71M4，SKA87-YVPEJ80M4，SKA87-YVPEJ90M4，GKA89-Y0.37SKA，GKA89-Y0.55SKA，GKA89-Y0.75SKA，GKA89-Y1.1SKA，GKA89-Y1.5SKA，GKA89-Y100M4，GKA89-Y112M4，GKA89-Y11SKA，GKA89-Y132M4，GKA89-Y15SKA，GKA89-Y160M4，GKA89-Y18.5SKA，GKA89-Y180M4，GKA89-Y2.2SKA，GKA89-Y200M4，GKA89-Y22SKA，GKA89-Y3SKA，GKA89-Y4SKA，GKA89-Y5.5SKA，GKA89-Y7.5SKA，GKA89-Y71M4，GKA89-Y80M4，GKA89-Y90M4，GKA89-YB100M4，GKA89-YB112M4，GKA89-YB132M4，GKA89-YB160M4，GKA89-YB180M4，GKA89-YB200M4，GKA89-YB71M4，GKA89-YB80M4，GKA89-YB90M4，GKA89-YDP100M4，GKA89-YDP112M4，GKA89-YDP132M4，GKA89-YDP160M4，GKA89-YDP180M4，GKA89-YDP200M4，GKA89-YDP71M4，GKA89-YDP80M4，GKA89-YDP90M4，GKA89-YE100M4，GKA89-YE112M4，GKA89-YE132M4，GKA89-YE160M4，GKA89-YE180M4，GKA89-YE200M4，GKA89-YE71M4，GKA89-YE80M4，GKA89-YE90M4，GKA89-YEJ100M4，GKA89-YEJ112M4，GKA89-YEJ132M4，GKA89-YEJ160M4，GKA89-YEJ180M4，GKA89-YEJ200M4，GKA89-YEJ71M4，GKA89-YEJ80M4，GKA89-YEJ90M4，GKA89-YEJB100M4，GKA89-YEJB112M4，GKA89-YEJB132M4，GKA89-YEJB160M4，GKA89-YEJB180M4，GKA89-YEJB200M4，GKA89-YEJB71M4，GKA89-YEJB80M4，GKA89-YEJB90M4，GKA89-YP100M4，GKA89-YP112M4，GKA89-YP132M4，GKA89-YP160M4，GKA89-YP180M4，GKA89-YP200M4，GKA89-YP71M4，GKA89-YP80M4，GKA89-YP90M4，GKA89-YPB100M4，GKA89-YPB112M4，GKA89-YPB132M4，GKA89-YPB160M4，GKA89-YPB180M4，GKA89-YPB200M4，GKA89-YPB71M4，GKA89-YPB80M4，GKA89-YPB90M4，GKA89-YPE100M4，GKA89-YPE112M4，GKA89-YPE132M4，GKA89-YPE160M4，GKA89-YPE180M4，GKA89-YPE200M4，GKA89-YPE71M4，GKA89-YPE80M4，GKA89-YPE90M4，GKA89-YS100M4，GKA89-YS112M4，GKA89-YS132M4，GKA89-YS160M4，GKA89-YS180M4，GKA89-YS200M4，GKA89-YS71M4，GKA89-YS80M4，GKA89-YS90M4，GKA89-YVB100M4，GKA89-YVB112M4，GKA89-YVB132M4，GKA89-YVB160M4，GKA89-YVB180M4，GKA89-YVB200M4，GKA89-YVB71M4，GKA89-YVB80M4，GKA89-YVB90M4，GKA89-YVP100M4，GKA89-YVP112M4，GKA89-YVP132M4，GKA89-YVP160M4，GKA89-YVP180M4，GKA89-YVP200M4，GKA89-YVP71M4，GKA89-YVP80M4，GKA89-YVP90M4，GKA89-YVPEJ100M4，GKA89-YVPEJ112M4，GKA89-YVPEJ132M4，GKA89-YVPEJ160M4，GKA89-YVPEJ180M4，GKA89-YVPEJ200M4，GKA89-YVPEJ71M4，GKA89-YVPEJ80M4，GKA89-YVPEJ90M4。

KA89減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.yayuyw.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K89減速機
