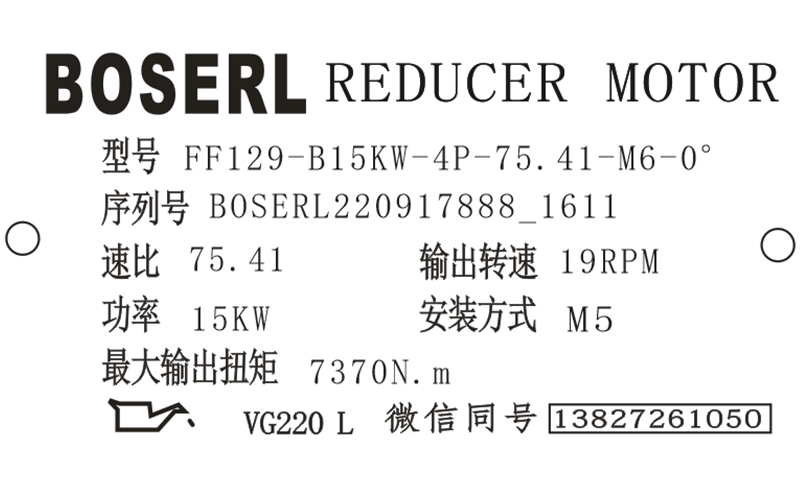

FF129減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF129減速機選型樣本。

FF129-YVPEJ15KW-4P-75.41-M6-0°

FF：系列代號

129：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

15KW：電機功率

4P：電機級數

75.41：減速機傳動比

M6：減速機安裝位置

0°：接線盒位置

FF129減速機潤滑油型號：

FF129減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF129減速機選型樣本中列出了安裝位置從M1到M6FF129減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF129減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF129減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF129減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF129減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF129減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF129減速機使用說明：

FF129減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF129減速機警告說明：由于FF129減速機發熱或FF129減速機油溫過高可能引起燙傷；對FF129減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF129減速機注意事項：若未注入正確的FF129減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF129減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF129減速機說明書安裝位置章節中的內容。剎車電機減速機

FF129減速機的螺母：立式安裝FF129減速機輸出法蘭螺母規格M16；FF129減速機螺母/螺母擰緊扭矩強度等級10.9。

FF129減速機型號：

SFF127-Y11KW，SFF127-Y132M4，SFF127-Y15KW，SFF127-Y160M4，SFF127-Y18.5KW，SFF127-Y180M4，SFF127-Y200M4，SFF127-Y225M4，SFF127-Y22KW，SFF127-Y250M4，SFF127-Y280M4，SFF127-Y30KW，SFF127-Y37KW，SFF127-Y45KW，SFF127-Y55KW，SFF127-Y7.5KW，SFF127-Y75KW，SFF127-Y90KW，SFF127-YB132M4，SFF127-YB160M4，SFF127-YB180M4，SFF127-YB200M4，SFF127-YB225M4，SFF127-YB250M4，SFF127-YB280M4，SFF127-YDP132M4，SFF127-YDP160M4，SFF127-YDP180M4，SFF127-YDP200M4，SFF127-YDP225M4，SFF127-YDP250M4，SFF127-YDP280M4，SFF127-YE132M4，SFF127-YE160M4，SFF127-YE180M4，SFF127-YE200M4，SFF127-YE225M4，SFF127-YE250M4，SFF127-YE280M4，SFF127-YEJ132M4，SFF127-YEJ160M4，SFF127-YEJ180M4，SFF127-YEJ200M4，SFF127-YEJ225M4，SFF127-YEJ250M4，SFF127-YEJ280M4，SFF127-YEJB132M4，SFF127-YEJB160M4，SFF127-YEJB180M4，SFF127-YEJB200M4，SFF127-YEJB225M4，SFF127-YEJB250M4，SFF127-YEJB280M4，SFF127-YP132M4，SFF127-YP160M4，SFF127-YP180M4，SFF127-YP200M4，SFF127-YP225M4，SFF127-YP250M4，SFF127-YP280M4，SFF127-YPB132M4，SFF127-YPB160M4，SFF127-YPB180M4，SFF127-YPB200M4，SFF127-YPB225M4，SFF127-YPB250M4，SFF127-YPB280M4，SFF127-YPE132M4，SFF127-YPE160M4，SFF127-YPE180M4，SFF127-YPE200M4，SFF127-YPE225M4，SFF127-YPE250M4，SFF127-YPE280M4，SFF127-YS132M4，SFF127-YS160M4，SFF127-YS180M4，SFF127-YS200M4，SFF127-YS225M4，SFF127-YS250M4，SFF127-YS280M4，SFF127-YVB132M4，SFF127-YVB160M4，SFF127-YVB180M4，SFF127-YVB200M4，SFF127-YVB225M4，SFF127-YVB250M4，SFF127-YVB280M4，SFF127-YVP132M4，SFF127-YVP160M4，SFF127-YVP180M4，SFF127-YVP200M4，SFF127-YVP225M4，SFF127-YVP250M4，SFF127-YVP280M4，SFF127-YVPEJ132M4，SFF127-YVPEJ160M4，SFF127-YVPEJ180M4，SFF127-YVPEJ200M4，SFF127-YVPEJ225M4，SFF127-YVPEJ250M4，SFF127-YVPEJ280M4，NFF127-Y11KW，NFF127-Y132M4，NFF127-Y15KW，NFF127-Y160M4，NFF127-Y18.5KW，NFF127-Y180M4，NFF127-Y200M4，NFF127-Y225M4，NFF127-Y22KW，NFF127-Y250M4，NFF127-Y280M4，NFF127-Y30KW，NFF127-Y37KW，NFF127-Y45KW，NFF127-Y55KW，NFF127-Y7.5KW，NFF127-Y75KW，NFF127-Y90KW，NFF127-YB132M4，NFF127-YB160M4，NFF127-YB180M4，NFF127-YB200M4，NFF127-YB225M4，NFF127-YB250M4，NFF127-YB280M4，NFF127-YDP132M4，NFF127-YDP160M4，NFF127-YDP180M4，NFF127-YDP200M4，NFF127-YDP225M4，NFF127-YDP250M4，NFF127-YDP280M4，NFF127-YE132M4，NFF127-YE160M4，NFF127-YE180M4，NFF127-YE200M4，NFF127-YE225M4，NFF127-YE250M4，NFF127-YE280M4，NFF127-YEJ132M4，NFF127-YEJ160M4，NFF127-YEJ180M4，NFF127-YEJ200M4，NFF127-YEJ225M4，NFF127-YEJ250M4，NFF127-YEJ280M4，NFF127-YEJB132M4，NFF127-YEJB160M4，NFF127-YEJB180M4，NFF127-YEJB200M4，NFF127-YEJB225M4，NFF127-YEJB250M4，NFF127-YEJB280M4，NFF127-YP132M4，NFF127-YP160M4，NFF127-YP180M4，NFF127-YP200M4，NFF127-YP225M4，NFF127-YP250M4，NFF127-YP280M4，NFF127-YPB132M4，NFF127-YPB160M4，NFF127-YPB180M4，NFF127-YPB200M4，NFF127-YPB225M4，NFF127-YPB250M4，NFF127-YPB280M4，NFF127-YPE132M4，NFF127-YPE160M4，NFF127-YPE180M4，NFF127-YPE200M4，NFF127-YPE225M4，NFF127-YPE250M4，NFF127-YPE280M4，NFF127-YS132M4，NFF127-YS160M4，NFF127-YS180M4，NFF127-YS200M4，NFF127-YS225M4，NFF127-YS250M4，NFF127-YS280M4，NFF127-YVB132M4，NFF127-YVB160M4，NFF127-YVB180M4，NFF127-YVB200M4，NFF127-YVB225M4，NFF127-YVB250M4，NFF127-YVB280M4，NFF127-YVP132M4，NFF127-YVP160M4，NFF127-YVP180M4，NFF127-YVP200M4，NFF127-YVP225M4，NFF127-YVP250M4，NFF127-YVP280M4，NFF127-YVPEJ132M4，NFF127-YVPEJ160M4，NFF127-YVPEJ180M4，NFF127-YVPEJ200M4，NFF127-YVPEJ225M4，NFF127-YVPEJ250M4，NFF127-YVPEJ280M4，WFF127-Y11KW，WFF127-Y132M4，WFF127-Y15KW，WFF127-Y160M4，WFF127-Y18.5KW，WFF127-Y180M4，WFF127-Y200M4，WFF127-Y225M4，WFF127-Y22KW，WFF127-Y250M4，WFF127-Y280M4，WFF127-Y30KW，WFF127-Y37KW，WFF127-Y45KW，WFF127-Y55KW，WFF127-Y7.5KW，WFF127-Y75KW，WFF127-Y90KW，WFF127-YB132M4，WFF127-YB160M4，WFF127-YB180M4，WFF127-YB200M4，WFF127-YB225M4，WFF127-YB250M4，WFF127-YB280M4，WFF127-YDP132M4，WFF127-YDP160M4，WFF127-YDP180M4，WFF127-YDP200M4，WFF127-YDP225M4，WFF127-YDP250M4，WFF127-YDP280M4，WFF127-YE132M4，WFF127-YE160M4，WFF127-YE180M4，WFF127-YE200M4，WFF127-YE225M4，WFF127-YE250M4，WFF127-YE280M4，WFF127-YEJ132M4，WFF127-YEJ160M4，WFF127-YEJ180M4，WFF127-YEJ200M4，WFF127-YEJ225M4，WFF127-YEJ250M4，WFF127-YEJ280M4，WFF127-YEJB132M4，WFF127-YEJB160M4，WFF127-YEJB180M4，WFF127-YEJB200M4，WFF127-YEJB225M4，WFF127-YEJB250M4，WFF127-YEJB280M4，WFF127-YP132M4，WFF127-YP160M4，WFF127-YP180M4，WFF127-YP200M4，WFF127-YP225M4，WFF127-YP250M4，WFF127-YP280M4，WFF127-YPB132M4，WFF127-YPB160M4，WFF127-YPB180M4，WFF127-YPB200M4，WFF127-YPB225M4，WFF127-YPB250M4，WFF127-YPB280M4，WFF127-YPE132M4，WFF127-YPE160M4，WFF127-YPE180M4，WFF127-YPE200M4，WFF127-YPE225M4，WFF127-YPE250M4，WFF127-YPE280M4，WFF127-YS132M4，WFF127-YS160M4，WFF127-YS180M4，WFF127-YS200M4，WFF127-YS225M4，WFF127-YS250M4，WFF127-YS280M4，WFF127-YVB132M4，WFF127-YVB160M4，WFF127-YVB180M4，WFF127-YVB200M4，WFF127-YVB225M4，WFF127-YVB250M4，WFF127-YVB280M4，WFF127-YVP132M4，WFF127-YVP160M4，WFF127-YVP180M4，WFF127-YVP200M4，WFF127-YVP225M4，WFF127-YVP250M4，WFF127-YVP280M4，WFF127-YVPEJ132M4，WFF127-YVPEJ160M4，WFF127-YVPEJ180M4，WFF127-YVPEJ200M4，WFF127-YVPEJ225M4，WFF127-YVPEJ250M4，WFF127-YVPEJ280M4，AFF127-Y11KW，AFF127-Y132M4，AFF127-Y15KW，AFF127-Y160M4，AFF127-Y18.5KW，AFF127-Y180M4，AFF127-Y200M4，AFF127-Y225M4，AFF127-Y22KW，AFF127-Y250M4，AFF127-Y280M4，AFF127-Y30KW，AFF127-Y37KW，AFF127-Y45KW，AFF127-Y55KW，AFF127-Y7.5KW，AFF127-Y75KW，AFF127-Y90KW，AFF127-YB132M4，AFF127-YB160M4，AFF127-YB180M4，AFF127-YB200M4，AFF127-YB225M4，AFF127-YB250M4，AFF127-YB280M4，AFF127-YDP132M4，AFF127-YDP160M4，AFF127-YDP180M4，AFF127-YDP200M4，AFF127-YDP225M4，AFF127-YDP250M4，AFF127-YDP280M4，AFF127-YE132M4，AFF127-YE160M4，AFF127-YE180M4，AFF127-YE200M4，AFF127-YE225M4，AFF127-YE250M4，AFF127-YE280M4，AFF127-YEJ132M4，AFF127-YEJ160M4，AFF127-YEJ180M4，AFF127-YEJ200M4，AFF127-YEJ225M4，AFF127-YEJ250M4，AFF127-YEJ280M4，AFF127-YEJB132M4，AFF127-YEJB160M4，AFF127-YEJB180M4，AFF127-YEJB200M4，AFF127-YEJB225M4，AFF127-YEJB250M4，AFF127-YEJB280M4，AFF127-YP132M4，AFF127-YP160M4，AFF127-YP180M4，AFF127-YP200M4，AFF127-YP225M4，AFF127-YP250M4，AFF127-YP280M4，AFF127-YPB132M4，AFF127-YPB160M4，AFF127-YPB180M4，AFF127-YPB200M4，AFF127-YPB225M4，AFF127-YPB250M4，AFF127-YPB280M4，AFF127-YPE132M4，AFF127-YPE160M4，AFF127-YPE180M4，AFF127-YPE200M4，AFF127-YPE225M4，AFF127-YPE250M4，AFF127-YPE280M4，AFF127-YS132M4，AFF127-YS160M4，AFF127-YS180M4，AFF127-YS200M4，AFF127-YS225M4，AFF127-YS250M4，AFF127-YS280M4，AFF127-YVB132M4，AFF127-YVB160M4，AFF127-YVB180M4，AFF127-YVB200M4，AFF127-YVB225M4，AFF127-YVB250M4，AFF127-YVB280M4，AFF127-YVP132M4，AFF127-YVP160M4，AFF127-YVP180M4，AFF127-YVP200M4，AFF127-YVP225M4，AFF127-YVP250M4，AFF127-YVP280M4，AFF127-YVPEJ132M4，AFF127-YVPEJ160M4，AFF127-YVPEJ180M4，AFF127-YVPEJ200M4，AFF127-YVPEJ225M4，AFF127-YVPEJ250M4，AFF127-YVPEJ280M4，GFF129-Y11KW，GFF129-Y132M4，GFF129-Y15KW，GFF129-Y160M4，GFF129-Y18.5KW，GFF129-Y180M4，GFF129-Y200M4，GFF129-Y225M4，GFF129-Y22KW，GFF129-Y250M4，GFF129-Y280M4，GFF129-Y30KW，GFF129-Y37KW，GFF129-Y45KW，GFF129-Y55KW，GFF129-Y7.5KW，GFF129-Y75KW，GFF129-Y90KW，GFF129-YB132M4，GFF129-YB160M4，GFF129-YB180M4，GFF129-YB200M4，GFF129-YB225M4，GFF129-YB250M4，GFF129-YB280M4，GFF129-YDP132M4，GFF129-YDP160M4，GFF129-YDP180M4，GFF129-YDP200M4，GFF129-YDP225M4，GFF129-YDP250M4，GFF129-YDP280M4，GFF129-YE132M4，GFF129-YE160M4，GFF129-YE180M4，GFF129-YE200M4，GFF129-YE225M4，GFF129-YE250M4，GFF129-YE280M4，GFF129-YEJ132M4，GFF129-YEJ160M4，GFF129-YEJ180M4，GFF129-YEJ200M4，GFF129-YEJ225M4，GFF129-YEJ250M4，GFF129-YEJ280M4，GFF129-YEJB132M4，GFF129-YEJB160M4，GFF129-YEJB180M4，GFF129-YEJB200M4，GFF129-YEJB225M4，GFF129-YEJB250M4，GFF129-YEJB280M4，GFF129-YP132M4，GFF129-YP160M4，GFF129-YP180M4，GFF129-YP200M4，GFF129-YP225M4，GFF129-YP250M4，GFF129-YP280M4，GFF129-YPB132M4，GFF129-YPB160M4，GFF129-YPB180M4，GFF129-YPB200M4，GFF129-YPB225M4，GFF129-YPB250M4，GFF129-YPB280M4，GFF129-YPE132M4，GFF129-YPE160M4，GFF129-YPE180M4，GFF129-YPE200M4，GFF129-YPE225M4，GFF129-YPE250M4，GFF129-YPE280M4，GFF129-YS132M4，GFF129-YS160M4，GFF129-YS180M4，GFF129-YS200M4，GFF129-YS225M4，GFF129-YS250M4，GFF129-YS280M4，GFF129-YVB132M4，GFF129-YVB160M4，GFF129-YVB180M4，GFF129-YVB200M4，GFF129-YVB225M4，GFF129-YVB250M4，GFF129-YVB280M4，GFF129-YVP132M4，GFF129-YVP160M4，GFF129-YVP180M4，GFF129-YVP200M4，GFF129-YVP225M4，GFF129-YVP250M4，GFF129-YVP280M4，GFF129-YVPEJ132M4，GFF129-YVPEJ160M4，GFF129-YVPEJ180M4，GFF129-YVPEJ200M4，GFF129-YVPEJ225M4，GFF129-YVPEJ250M4，GFF129-YVPEJ280M4。

FF129減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.yayuyw.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F129減速機
