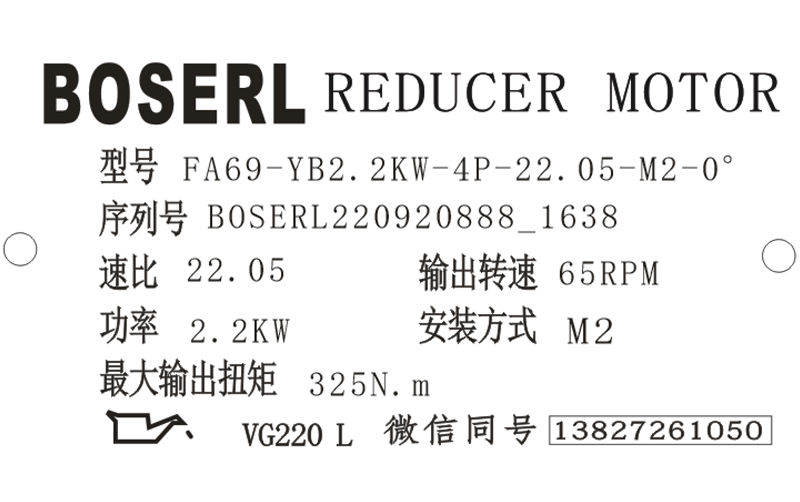

FA69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA69減速器選型樣本。

FA69-YB2.2KW-4P-22.05-M2-0°

FA：系列代號

69：減速機規格代號

YB：電機

2.2KW：電機功率

4P：電機級數

22.05：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

FA69減速器逆止器安裝：

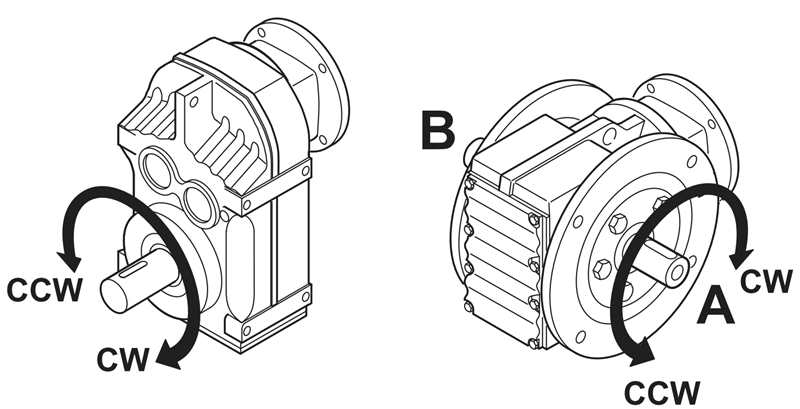

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA69減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA69減速器潤滑油檢查：

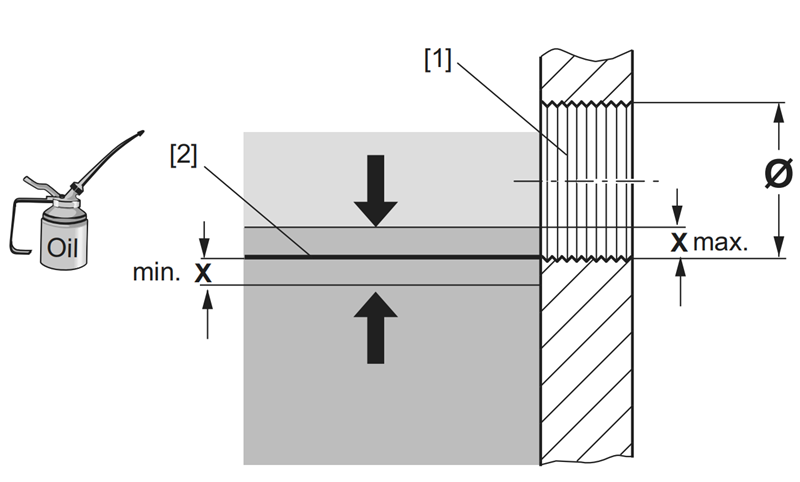

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

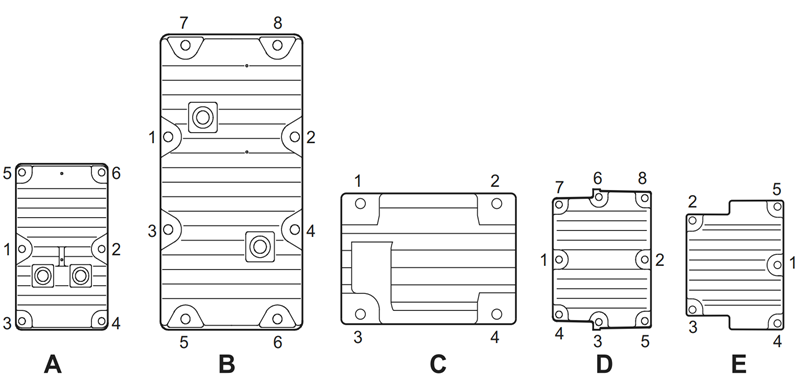

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA69減速器型號：

XDFA67-Y0.18KW，XDFA67-Y0.25KW，XDFA67-Y0.37KW，XDFA67-Y0.55KW，XDFA67-Y0.75KW，XDFA67-Y1.1KW，XDFA67-Y1.5KW，XDFA67-Y100M4，XDFA67-Y112M4，XDFA67-Y132M4，XDFA67-Y2.2KW，XDFA67-Y3KW，XDFA67-Y4KW，XDFA67-Y5.5KW，XDFA67-Y63M4，XDFA67-Y71M4，XDFA67-Y80M4，XDFA67-Y90M4，XDFA67-YB100M4，XDFA67-YB112M4，XDFA67-YB132M4，XDFA67-YB63M4，XDFA67-YB71M4，XDFA67-YB80M4，XDFA67-YB90M4，XDFA67-YDP100M4，XDFA67-YDP112M4，XDFA67-YDP132M4，XDFA67-YDP63M4，XDFA67-YDP71M4，XDFA67-YDP80M4，XDFA67-YDP90M4，XDFA67-YE100M4，XDFA67-YE112M4，XDFA67-YE132M4，XDFA67-YE63M4，XDFA67-YE71M4，XDFA67-YE80M4，XDFA67-YE90M4，XDFA67-YEJ100M4，XDFA67-YEJ112M4，XDFA67-YEJ132M4，XDFA67-YEJ63M4，XDFA67-YEJ71M4，XDFA67-YEJ80M4，XDFA67-YEJ90M4，XDFA67-YEJB100M4，XDFA67-YEJB112M4，XDFA67-YEJB132M4，XDFA67-YEJB63M4，XDFA67-YEJB71M4，XDFA67-YEJB80M4，XDFA67-YEJB90M4，XDFA67-YP100M4，XDFA67-YP112M4，XDFA67-YP132M4，XDFA67-YP63M4，XDFA67-YP71M4，XDFA67-YP80M4，XDFA67-YP90M4，XDFA67-YPB100M4，XDFA67-YPB112M4，XDFA67-YPB132M4，XDFA67-YPB63M4，XDFA67-YPB71M4，XDFA67-YPB80M4，XDFA67-YPB90M4，XDFA67-YPE100M4，XDFA67-YPE112M4，XDFA67-YPE132M4，XDFA67-YPE63M4，XDFA67-YPE71M4，XDFA67-YPE80M4，XDFA67-YPE90M4，XDFA67-YS100M4，XDFA67-YS112M4，XDFA67-YS132M4，XDFA67-YS63M4，XDFA67-YS71M4，XDFA67-YS80M4，XDFA67-YS90M4，XDFA67-YVB100M4，XDFA67-YVB112M4，XDFA67-YVB132M4，XDFA67-YVB63M4，XDFA67-YVB71M4，XDFA67-YVB80M4，XDFA67-YVB90M4，XDFA67-YVP100M4，XDFA67-YVP112M4，XDFA67-YVP132M4，XDFA67-YVP63M4，XDFA67-YVP71M4，XDFA67-YVP80M4，XDFA67-YVP90M4，XDFA67-YVPEJ100M4，XDFA67-YVPEJ112M4，XDFA67-YVPEJ132M4，XDFA67-YVPEJ63M4，XDFA67-YVPEJ71M4，XDFA67-YVPEJ80M4，XDFA67-YVPEJ90M4，FWA67-Y0.18KW，FWA67-Y0.25KW，FWA67-Y0.37KW，FWA67-Y0.55KW，FWA67-Y0.75KW，FWA67-Y1.1KW，FWA67-Y1.5KW，FWA67-Y100M4，FWA67-Y112M4，FWA67-Y132M4，FWA67-Y2.2KW，FWA67-Y3KW，FWA67-Y4KW，FWA67-Y5.5KW，FWA67-Y63M4，FWA67-Y71M4，FWA67-Y80M4，FWA67-Y90M4，FWA67-YB100M4，FWA67-YB112M4，FWA67-YB132M4，FWA67-YB63M4，FWA67-YB71M4，FWA67-YB80M4，FWA67-YB90M4，FWA67-YDP100M4，FWA67-YDP112M4，FWA67-YDP132M4，FWA67-YDP63M4，FWA67-YDP71M4，FWA67-YDP80M4，FWA67-YDP90M4，FWA67-YE100M4，FWA67-YE112M4，FWA67-YE132M4，FWA67-YE63M4，FWA67-YE71M4，FWA67-YE80M4，FWA67-YE90M4，FWA67-YEJ100M4，FWA67-YEJ112M4，FWA67-YEJ132M4，FWA67-YEJ63M4，FWA67-YEJ71M4，FWA67-YEJ80M4，FWA67-YEJ90M4，FWA67-YEJB100M4，FWA67-YEJB112M4，FWA67-YEJB132M4，FWA67-YEJB63M4，FWA67-YEJB71M4，FWA67-YEJB80M4，FWA67-YEJB90M4，FWA67-YP100M4，FWA67-YP112M4，FWA67-YP132M4，FWA67-YP63M4，FWA67-YP71M4，FWA67-YP80M4，FWA67-YP90M4，FWA67-YPB100M4，FWA67-YPB112M4，FWA67-YPB132M4，FWA67-YPB63M4，FWA67-YPB71M4，FWA67-YPB80M4，FWA67-YPB90M4，FWA67-YPE100M4，FWA67-YPE112M4，FWA67-YPE132M4，FWA67-YPE63M4，FWA67-YPE71M4，FWA67-YPE80M4，FWA67-YPE90M4，FWA67-YS100M4，FWA67-YS112M4，FWA67-YS132M4，FWA67-YS63M4，FWA67-YS71M4，FWA67-YS80M4，FWA67-YS90M4，FWA67-YVB100M4，FWA67-YVB112M4，FWA67-YVB132M4，FWA67-YVB63M4，FWA67-YVB71M4，FWA67-YVB80M4，FWA67-YVB90M4，FWA67-YVP100M4，FWA67-YVP112M4，FWA67-YVP132M4，FWA67-YVP63M4，FWA67-YVP71M4，FWA67-YVP80M4，FWA67-YVP90M4，FWA67-YVPEJ100M4，FWA67-YVPEJ112M4，FWA67-YVPEJ132M4，FWA67-YVPEJ63M4，FWA67-YVPEJ71M4，FWA67-YVPEJ80M4，FWA67-YVPEJ90M4，JCFA67-Y0.18KW，JCFA67-Y0.25KW，JCFA67-Y0.37KW，JCFA67-Y0.55KW，JCFA67-Y0.75KW，JCFA67-Y1.1KW，JCFA67-Y1.5KW，JCFA67-Y100M4，JCFA67-Y112M4，JCFA67-Y132M4，JCFA67-Y2.2KW，JCFA67-Y3KW，JCFA67-Y4KW，JCFA67-Y5.5KW，JCFA67-Y63M4，JCFA67-Y71M4，JCFA67-Y80M4，JCFA67-Y90M4，JCFA67-YB100M4，JCFA67-YB112M4，JCFA67-YB132M4，JCFA67-YB63M4，JCFA67-YB71M4，JCFA67-YB80M4，JCFA67-YB90M4，JCFA67-YDP100M4，JCFA67-YDP112M4，JCFA67-YDP132M4，JCFA67-YDP63M4，JCFA67-YDP71M4，JCFA67-YDP80M4，JCFA67-YDP90M4，JCFA67-YE100M4，JCFA67-YE112M4，JCFA67-YE132M4，JCFA67-YE63M4，JCFA67-YE71M4，JCFA67-YE80M4，JCFA67-YE90M4，JCFA67-YEJ100M4，JCFA67-YEJ112M4，JCFA67-YEJ132M4，JCFA67-YEJ63M4，JCFA67-YEJ71M4，JCFA67-YEJ80M4，JCFA67-YEJ90M4，JCFA67-YEJB100M4，JCFA67-YEJB112M4，JCFA67-YEJB132M4，JCFA67-YEJB63M4，JCFA67-YEJB71M4，JCFA67-YEJB80M4，JCFA67-YEJB90M4，JCFA67-YP100M4，JCFA67-YP112M4，JCFA67-YP132M4，JCFA67-YP63M4，JCFA67-YP71M4，JCFA67-YP80M4，JCFA67-YP90M4，JCFA67-YPB100M4，JCFA67-YPB112M4，JCFA67-YPB132M4，JCFA67-YPB63M4，JCFA67-YPB71M4，JCFA67-YPB80M4，JCFA67-YPB90M4，JCFA67-YPE100M4，JCFA67-YPE112M4，JCFA67-YPE132M4，JCFA67-YPE63M4，JCFA67-YPE71M4，JCFA67-YPE80M4，JCFA67-YPE90M4，JCFA67-YS100M4，JCFA67-YS112M4，JCFA67-YS132M4，JCFA67-YS63M4，JCFA67-YS71M4，JCFA67-YS80M4，JCFA67-YS90M4，JCFA67-YVB100M4，JCFA67-YVB112M4，JCFA67-YVB132M4，JCFA67-YVB63M4，JCFA67-YVB71M4，JCFA67-YVB80M4，JCFA67-YVB90M4，JCFA67-YVP100M4，JCFA67-YVP112M4，JCFA67-YVP132M4，JCFA67-YVP63M4，JCFA67-YVP71M4，JCFA67-YVP80M4，JCFA67-YVP90M4，JCFA67-YVPEJ100M4，JCFA67-YVPEJ112M4，JCFA67-YVPEJ132M4，JCFA67-YVPEJ63M4，JCFA67-YVPEJ71M4，JCFA67-YVPEJ80M4，JCFA67-YVPEJ90M4，YQFA67-Y0.18KW，YQFA67-Y0.25KW，YQFA67-Y0.37KW，YQFA67-Y0.55KW，YQFA67-Y0.75KW，YQFA67-Y1.1KW，YQFA67-Y1.5KW，YQFA67-Y100M4，YQFA67-Y112M4，YQFA67-Y132M4，YQFA67-Y2.2KW，YQFA67-Y3KW，YQFA67-Y4KW，YQFA67-Y5.5KW，YQFA67-Y63M4，YQFA67-Y71M4，YQFA67-Y80M4，YQFA67-Y90M4，YQFA67-YB100M4，YQFA67-YB112M4，YQFA67-YB132M4，YQFA67-YB63M4，YQFA67-YB71M4，YQFA67-YB80M4，YQFA67-YB90M4，YQFA67-YDP100M4，YQFA67-YDP112M4，YQFA67-YDP132M4，YQFA67-YDP63M4，YQFA67-YDP71M4，YQFA67-YDP80M4，YQFA67-YDP90M4，YQFA67-YE100M4，YQFA67-YE112M4，YQFA67-YE132M4，YQFA67-YE63M4，YQFA67-YE71M4，YQFA67-YE80M4，YQFA67-YE90M4，YQFA67-YEJ100M4，YQFA67-YEJ112M4，YQFA67-YEJ132M4，YQFA67-YEJ63M4，YQFA67-YEJ71M4，YQFA67-YEJ80M4，YQFA67-YEJ90M4，YQFA67-YEJB100M4，YQFA67-YEJB112M4，YQFA67-YEJB132M4，YQFA67-YEJB63M4，YQFA67-YEJB71M4，YQFA67-YEJB80M4，YQFA67-YEJB90M4，YQFA67-YP100M4，YQFA67-YP112M4，YQFA67-YP132M4，YQFA67-YP63M4，YQFA67-YP71M4，YQFA67-YP80M4，YQFA67-YP90M4，YQFA67-YPB100M4，YQFA67-YPB112M4，YQFA67-YPB132M4，YQFA67-YPB63M4，YQFA67-YPB71M4，YQFA67-YPB80M4，YQFA67-YPB90M4，YQFA67-YPE100M4，YQFA67-YPE112M4，YQFA67-YPE132M4，YQFA67-YPE63M4，YQFA67-YPE71M4，YQFA67-YPE80M4，YQFA67-YPE90M4，YQFA67-YS100M4，YQFA67-YS112M4，YQFA67-YS132M4，YQFA67-YS63M4，YQFA67-YS71M4，YQFA67-YS80M4，YQFA67-YS90M4，YQFA67-YVB100M4，YQFA67-YVB112M4，YQFA67-YVB132M4，YQFA67-YVB63M4，YQFA67-YVB71M4，YQFA67-YVB80M4，YQFA67-YVB90M4，YQFA67-YVP100M4，YQFA67-YVP112M4，YQFA67-YVP132M4，YQFA67-YVP63M4，YQFA67-YVP71M4，YQFA67-YVP80M4，YQFA67-YVP90M4，YQFA67-YVPEJ100M4，YQFA67-YVPEJ112M4，YQFA67-YVPEJ132M4，YQFA67-YVPEJ63M4，YQFA67-YVPEJ71M4，YQFA67-YVPEJ80M4，YQFA67-YVPEJ90M4，FA69-Y0.18KW，FA69-Y0.25KW，FA69-Y0.37KW，FA69-Y0.55KW，FA69-Y0.75KW，FA69-Y1.1KW，FA69-Y1.5KW，FA69-Y100M4，FA69-Y112M4，FA69-Y132M4，FA69-Y2.2KW，FA69-Y3KW，FA69-Y4KW，FA69-Y5.5KW，FA69-Y63M4，FA69-Y71M4，FA69-Y80M4，FA69-Y90M4，FA69-YB100M4，FA69-YB112M4，FA69-YB132M4，FA69-YB63M4，FA69-YB71M4，FA69-YB80M4，FA69-YB90M4，FA69-YDP100M4，FA69-YDP112M4，FA69-YDP132M4，FA69-YDP63M4，FA69-YDP71M4，FA69-YDP80M4，FA69-YDP90M4，FA69-YE100M4，FA69-YE112M4，FA69-YE132M4，FA69-YE63M4，FA69-YE71M4，FA69-YE80M4，FA69-YE90M4，FA69-YEJ100M4，FA69-YEJ112M4，FA69-YEJ132M4，FA69-YEJ63M4，FA69-YEJ71M4，FA69-YEJ80M4，FA69-YEJ90M4，FA69-YEJB100M4，FA69-YEJB112M4，FA69-YEJB132M4，FA69-YEJB63M4，FA69-YEJB71M4，FA69-YEJB80M4，FA69-YEJB90M4，FA69-YP100M4，FA69-YP112M4，FA69-YP132M4，FA69-YP63M4，FA69-YP71M4，FA69-YP80M4，FA69-YP90M4，FA69-YPB100M4，FA69-YPB112M4，FA69-YPB132M4，FA69-YPB63M4，FA69-YPB71M4，FA69-YPB80M4，FA69-YPB90M4，FA69-YPE100M4，FA69-YPE112M4，FA69-YPE132M4，FA69-YPE63M4，FA69-YPE71M4，FA69-YPE80M4，FA69-YPE90M4，FA69-YS100M4，FA69-YS112M4，FA69-YS132M4，FA69-YS63M4，FA69-YS71M4，FA69-YS80M4，FA69-YS90M4，FA69-YVB100M4，FA69-YVB112M4，FA69-YVB132M4，FA69-YVB63M4，FA69-YVB71M4，FA69-YVB80M4，FA69-YVB90M4，FA69-YVP100M4，FA69-YVP112M4，FA69-YVP132M4，FA69-YVP63M4，FA69-YVP71M4，FA69-YVP80M4，FA69-YVP90M4，FA69-YVPEJ100M4，FA69-YVPEJ112M4，FA69-YVPEJ132M4，FA69-YVPEJ63M4，FA69-YVPEJ71M4，FA69-YVPEJ80M4，FA69-YVPEJ90M4，FA67SF80，FA67SF90，FA67SF100，FA67SF112，FA67SF115，FA67SF140，FA67SF160，FA67SF190。
