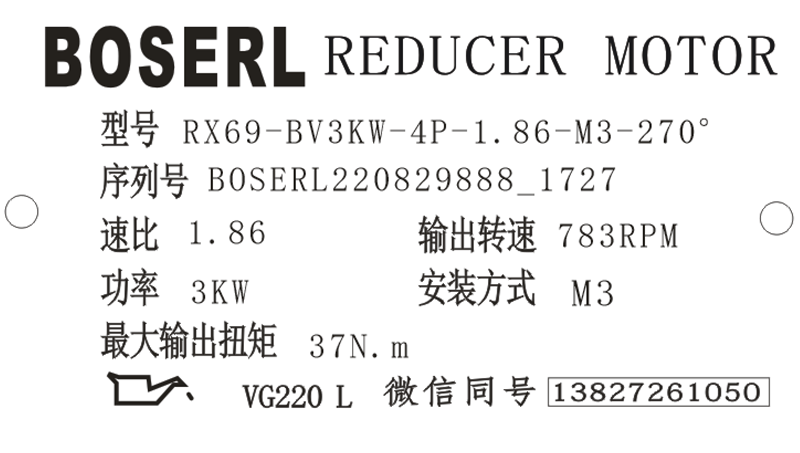

RX69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX69減速器選型樣本。

RX69-BV3KW-4P-1.86-M3-270°

RX：系列代號

69：減速機規格代號

BV：電機

3KW：電機功率

4P：電機級數

1.86：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

RX69減速器逆止器安裝：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。電機減速機一體機

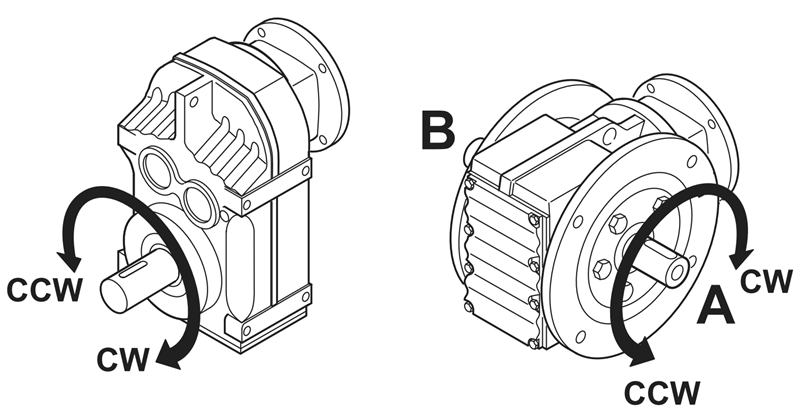

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

RX69減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

RX69減速器潤滑油檢查：

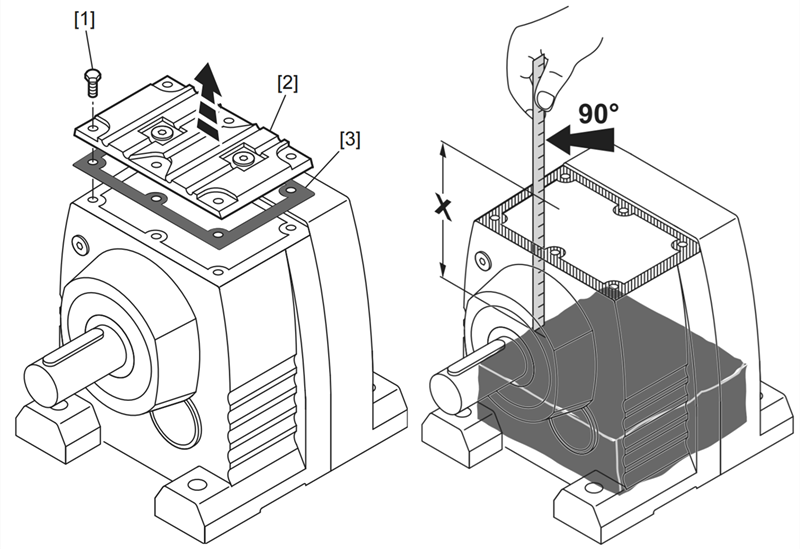

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

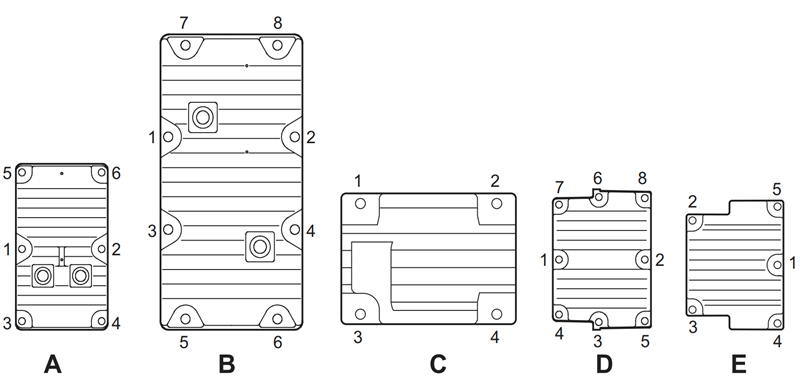

RX69減速器油位檢查完畢后密封RX69減速器：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。臥式減速機

RX69減速器型號：

NRX67-AM100M4，NRX67-AM112M4，NRX67-AM132M4，NRX67-AM63M4，NRX67-AM71M4，NRX67-AM80M4，NRX67-AM90M4，NRX67-Y0.12KW，NRX67-Y0.18KW，NRX67-Y0.25KW，NRX67-Y0.37KW，NRX67-Y0.55KW，NRX67-Y0.75KW，NRX67-Y1.1KW，NRX67-Y1.5KW，NRX67-Y100M4，NRX67-Y112M4，NRX67-Y132M4，NRX67-Y2.2KW，NRX67-Y3KW，NRX67-Y4KW，NRX67-Y5.5KW，NRX67-Y63M4，NRX67-Y7.5KW，NRX67-Y71M4，NRX67-Y80M4，NRX67-Y90M4，NRX67-YB100M4，NRX67-YB112M4，NRX67-YB132M4，NRX67-YB63M4，NRX67-YB71M4，NRX67-YB80M4，NRX67-YB90M4，NRX67-YDP100M4，NRX67-YDP112M4，NRX67-YDP132M4，NRX67-YDP63M4，NRX67-YDP71M4，NRX67-YDP80M4，NRX67-YDP90M4，NRX67-YE100M4，NRX67-YE112M4，NRX67-YE132M4，NRX67-YE63M4，NRX67-YE71M4，NRX67-YE80M4，NRX67-YE90M4，NRX67-YEJ100M4，NRX67-YEJ112M4，NRX67-YEJ132M4，NRX67-YEJ63M4，NRX67-YEJ71M4，NRX67-YEJ80M4，NRX67-YEJ90M4，NRX67-YEJB100M4，NRX67-YEJB112M4，NRX67-YEJB132M4，NRX67-YEJB63M4，NRX67-YEJB71M4，NRX67-YEJB80M4，NRX67-YEJB90M4，NRX67-YP100M4，NRX67-YP112M4，NRX67-YP132M4，NRX67-YP63M4，NRX67-YP71M4，NRX67-YP80M4，NRX67-YP90M4，NRX67-YPB100M4，NRX67-YPB112M4，NRX67-YPB132M4，NRX67-YPB63M4，NRX67-YPB71M4，NRX67-YPB80M4，NRX67-YPB90M4，NRX67-YPE100M4，NRX67-YPE112M4，NRX67-YPE132M4，NRX67-YPE63M4，NRX67-YPE71M4，NRX67-YPE80M4，NRX67-YPE90M4，NRX67-YS100M4，NRX67-YS112M4，NRX67-YS132M4，NRX67-YS63M4，NRX67-YS71M4，NRX67-YS80M4，NRX67-YS90M4，NRX67-YVB100M4，NRX67-YVB112M4，NRX67-YVB132M4，NRX67-YVB63M4，NRX67-YVB71M4，NRX67-YVB80M4，NRX67-YVB90M4，NRX67-YVP100M4，NRX67-YVP112M4，NRX67-YVP132M4，NRX67-YVP63M4，NRX67-YVP71M4，NRX67-YVP80M4，NRX67-YVP90M4，NRX67-YVPEJ100M4，NRX67-YVPEJ112M4，NRX67-YVPEJ132M4，NRX67-YVPEJ63M4，NRX67-YVPEJ71M4，NRX67-YVPEJ80M4，NRX67-YVPEJ90M4，GRX69-AM100M4，GRX69-AM112M4，GRX69-AM132M4，GRX69-AM63M4，GRX69-AM71M4，GRX69-AM80M4，GRX69-AM90M4，GRX69-Y0.12KW，GRX69-Y0.18KW，GRX69-Y0.25KW，GRX69-Y0.37KW，GRX69-Y0.55KW，GRX69-Y0.75KW，GRX69-Y1.1KW，GRX69-Y1.5KW，GRX69-Y100M4，GRX69-Y112M4，GRX69-Y132M4，GRX69-Y2.2KW，GRX69-Y3KW，GRX69-Y4KW，GRX69-Y5.5KW，GRX69-Y63M4，GRX69-Y7.5KW，GRX69-Y71M4，GRX69-Y80M4，GRX69-Y90M4，GRX69-YB100M4，GRX69-YB112M4，GRX69-YB132M4，GRX69-YB63M4，GRX69-YB71M4，GRX69-YB80M4，GRX69-YB90M4，GRX69-YDP100M4，GRX69-YDP112M4，GRX69-YDP132M4，GRX69-YDP63M4，GRX69-YDP71M4，GRX69-YDP80M4，GRX69-YDP90M4，GRX69-YE100M4，GRX69-YE112M4，GRX69-YE132M4，GRX69-YE63M4，GRX69-YE71M4，GRX69-YE80M4，GRX69-YE90M4，GRX69-YEJ100M4，GRX69-YEJ112M4，GRX69-YEJ132M4，GRX69-YEJ63M4，GRX69-YEJ71M4，GRX69-YEJ80M4，GRX69-YEJ90M4，GRX69-YEJB100M4，GRX69-YEJB112M4，GRX69-YEJB132M4，GRX69-YEJB63M4，GRX69-YEJB71M4，GRX69-YEJB80M4，GRX69-YEJB90M4，GRX69-YP100M4，GRX69-YP112M4，GRX69-YP132M4，GRX69-YP63M4，GRX69-YP71M4，GRX69-YP80M4，GRX69-YP90M4，GRX69-YPB100M4，GRX69-YPB112M4，GRX69-YPB132M4，GRX69-YPB63M4，GRX69-YPB71M4，GRX69-YPB80M4，GRX69-YPB90M4，GRX69-YPE100M4，GRX69-YPE112M4，GRX69-YPE132M4，GRX69-YPE63M4，GRX69-YPE71M4，GRX69-YPE80M4，GRX69-YPE90M4，GRX69-YS100M4，GRX69-YS112M4，GRX69-YS132M4，GRX69-YS63M4，GRX69-YS71M4，GRX69-YS80M4，GRX69-YS90M4，GRX69-YVB100M4，GRX69-YVB112M4，GRX69-YVB132M4，GRX69-YVB63M4，GRX69-YVB71M4，GRX69-YVB80M4，GRX69-YVB90M4，GRX69-YVP100M4，GRX69-YVP112M4，GRX69-YVP132M4，GRX69-YVP63M4，GRX69-YVP71M4，GRX69-YVP80M4，GRX69-YVP90M4，GRX69-YVPEJ100M4，GRX69-YVPEJ112M4，GRX69-YVPEJ132M4，GRX69-YVPEJ63M4，GRX69-YVPEJ71M4，GRX69-YVPEJ80M4，GRX69-YVPEJ90M4，ARX67-AM100M4，ARX67-AM112M4，ARX67-AM132M4，ARX67-AM63M4，ARX67-AM71M4，ARX67-AM80M4，ARX67-AM90M4，ARX67-Y0.12KW，ARX67-Y0.18KW，ARX67-Y0.25KW，ARX67-Y0.37KW，ARX67-Y0.55KW，ARX67-Y0.75KW，ARX67-Y1.1KW，ARX67-Y1.5KW，ARX67-Y100M4，ARX67-Y112M4，ARX67-Y132M4，ARX67-Y2.2KW，ARX67-Y3KW，ARX67-Y4KW，ARX67-Y5.5KW，ARX67-Y63M4，ARX67-Y7.5KW，ARX67-Y71M4，ARX67-Y80M4，ARX67-Y90M4，ARX67-YB100M4，ARX67-YB112M4，ARX67-YB132M4，ARX67-YB63M4，ARX67-YB71M4，ARX67-YB80M4，ARX67-YB90M4，ARX67-YDP100M4，ARX67-YDP112M4，ARX67-YDP132M4，ARX67-YDP63M4，ARX67-YDP71M4，ARX67-YDP80M4，ARX67-YDP90M4，ARX67-YE100M4，ARX67-YE112M4，ARX67-YE132M4，ARX67-YE63M4，ARX67-YE71M4，ARX67-YE80M4，ARX67-YE90M4，ARX67-YEJ100M4，ARX67-YEJ112M4，ARX67-YEJ132M4，ARX67-YEJ63M4，ARX67-YEJ71M4，ARX67-YEJ80M4，ARX67-YEJ90M4，ARX67-YEJB100M4，ARX67-YEJB112M4，ARX67-YEJB132M4，ARX67-YEJB63M4，ARX67-YEJB71M4，ARX67-YEJB80M4，ARX67-YEJB90M4，ARX67-YP100M4，ARX67-YP112M4，ARX67-YP132M4，ARX67-YP63M4，ARX67-YP71M4，ARX67-YP80M4，ARX67-YP90M4，ARX67-YPB100M4，ARX67-YPB112M4，ARX67-YPB132M4，ARX67-YPB63M4，ARX67-YPB71M4，ARX67-YPB80M4，ARX67-YPB90M4，ARX67-YPE100M4，ARX67-YPE112M4，ARX67-YPE132M4，ARX67-YPE63M4，ARX67-YPE71M4，ARX67-YPE80M4，ARX67-YPE90M4，ARX67-YS100M4，ARX67-YS112M4，ARX67-YS132M4，ARX67-YS63M4，ARX67-YS71M4，ARX67-YS80M4，ARX67-YS90M4，ARX67-YVB100M4，ARX67-YVB112M4，ARX67-YVB132M4，ARX67-YVB63M4，ARX67-YVB71M4，ARX67-YVB80M4，ARX67-YVB90M4，ARX67-YVP100M4，ARX67-YVP112M4，ARX67-YVP132M4，ARX67-YVP63M4，ARX67-YVP71M4，ARX67-YVP80M4，ARX67-YVP90M4，ARX67-YVPEJ100M4，ARX67-YVPEJ112M4，ARX67-YVPEJ132M4，ARX67-YVPEJ63M4，ARX67-YVPEJ71M4，ARX67-YVPEJ80M4，ARX67-YVPEJ90M4，WRX67-AM100M4，WRX67-AM112M4，WRX67-AM132M4，WRX67-AM63M4，WRX67-AM71M4，WRX67-AM80M4，WRX67-AM90M4，WRX67-Y0.12KW，WRX67-Y0.18KW，WRX67-Y0.25KW，WRX67-Y0.37KW，WRX67-Y0.55KW，WRX67-Y0.75KW，WRX67-Y1.1KW，WRX67-Y1.5KW，WRX67-Y100M4，WRX67-Y112M4，WRX67-Y132M4，WRX67-Y2.2KW，WRX67-Y3KW，WRX67-Y4KW，WRX67-Y5.5KW，WRX67-Y63M4，WRX67-Y7.5KW，WRX67-Y71M4，WRX67-Y80M4，WRX67-Y90M4，WRX67-YB100M4，WRX67-YB112M4，WRX67-YB132M4，WRX67-YB63M4，WRX67-YB71M4，WRX67-YB80M4，WRX67-YB90M4，WRX67-YDP100M4，WRX67-YDP112M4，WRX67-YDP132M4，WRX67-YDP63M4，WRX67-YDP71M4，WRX67-YDP80M4，WRX67-YDP90M4，WRX67-YE100M4，WRX67-YE112M4，WRX67-YE132M4，WRX67-YE63M4，WRX67-YE71M4，WRX67-YE80M4，WRX67-YE90M4，WRX67-YEJ100M4，WRX67-YEJ112M4，WRX67-YEJ132M4，WRX67-YEJ63M4，WRX67-YEJ71M4，WRX67-YEJ80M4，WRX67-YEJ90M4，WRX67-YEJB100M4，WRX67-YEJB112M4，WRX67-YEJB132M4，WRX67-YEJB63M4，WRX67-YEJB71M4，WRX67-YEJB80M4，WRX67-YEJB90M4，WRX67-YP100M4，WRX67-YP112M4，WRX67-YP132M4，WRX67-YP63M4，WRX67-YP71M4，WRX67-YP80M4，WRX67-YP90M4，WRX67-YPB100M4，WRX67-YPB112M4，WRX67-YPB132M4，WRX67-YPB63M4，WRX67-YPB71M4，WRX67-YPB80M4，WRX67-YPB90M4，WRX67-YPE100M4，WRX67-YPE112M4，WRX67-YPE132M4，WRX67-YPE63M4，WRX67-YPE71M4，WRX67-YPE80M4，WRX67-YPE90M4，WRX67-YS100M4，WRX67-YS112M4，WRX67-YS132M4，WRX67-YS63M4，WRX67-YS71M4，WRX67-YS80M4，WRX67-YS90M4，WRX67-YVB100M4，WRX67-YVB112M4，WRX67-YVB132M4，WRX67-YVB63M4，WRX67-YVB71M4，WRX67-YVB80M4，WRX67-YVB90M4，WRX67-YVP100M4，WRX67-YVP112M4，WRX67-YVP132M4，WRX67-YVP63M4，WRX67-YVP71M4，WRX67-YVP80M4，WRX67-YVP90M4，WRX67-YVPEJ100M4，WRX67-YVPEJ112M4，WRX67-YVPEJ132M4，WRX67-YVPEJ63M4，WRX67-YVPEJ71M4，WRX67-YVPEJ80M4，WRX67-YVPEJ90M4，SRX67-AM100M4，SRX67-AM112M4，SRX67-AM132M4，SRX67-AM63M4，SRX67-AM71M4，SRX67-AM80M4，SRX67-AM90M4，SRX67-Y0.12KW，SRX67-Y0.18KW，SRX67-Y0.25KW，SRX67-Y0.37KW，SRX67-Y0.55KW，SRX67-Y0.75KW，SRX67-Y1.1KW，SRX67-Y1.5KW，SRX67-Y100M4，SRX67-Y112M4，SRX67-Y132M4，SRX67-Y2.2KW，SRX67-Y3KW，SRX67-Y4KW，SRX67-Y5.5KW，SRX67-Y63M4，SRX67-Y7.5KW，SRX67-Y71M4，SRX67-Y80M4，SRX67-Y90M4，SRX67-YB100M4，SRX67-YB112M4，SRX67-YB132M4，SRX67-YB63M4，SRX67-YB71M4，SRX67-YB80M4，SRX67-YB90M4，SRX67-YDP100M4，SRX67-YDP112M4，SRX67-YDP132M4，SRX67-YDP63M4，SRX67-YDP71M4，SRX67-YDP80M4，SRX67-YDP90M4，SRX67-YE100M4，SRX67-YE112M4，SRX67-YE132M4，SRX67-YE63M4，SRX67-YE71M4，SRX67-YE80M4，SRX67-YE90M4，SRX67-YEJ100M4，SRX67-YEJ112M4，SRX67-YEJ132M4，SRX67-YEJ63M4，SRX67-YEJ71M4，SRX67-YEJ80M4，SRX67-YEJ90M4，SRX67-YEJB100M4，SRX67-YEJB112M4，SRX67-YEJB132M4，SRX67-YEJB63M4，SRX67-YEJB71M4，SRX67-YEJB80M4，SRX67-YEJB90M4，SRX67-YP100M4，SRX67-YP112M4，SRX67-YP132M4，SRX67-YP63M4，SRX67-YP71M4，SRX67-YP80M4，SRX67-YP90M4，SRX67-YPB100M4，SRX67-YPB112M4，SRX67-YPB132M4，SRX67-YPB63M4，SRX67-YPB71M4，SRX67-YPB80M4，SRX67-YPB90M4，SRX67-YPE100M4，SRX67-YPE112M4，SRX67-YPE132M4，SRX67-YPE63M4，SRX67-YPE71M4，SRX67-YPE80M4，SRX67-YPE90M4，SRX67-YS100M4，SRX67-YS112M4，SRX67-YS132M4，SRX67-YS63M4，SRX67-YS71M4，SRX67-YS80M4，SRX67-YS90M4，SRX67-YVB100M4，SRX67-YVB112M4，SRX67-YVB132M4，SRX67-YVB63M4，SRX67-YVB71M4，SRX67-YVB80M4，SRX67-YVB90M4，SRX67-YVP100M4，SRX67-YVP112M4，SRX67-YVP132M4，SRX67-YVP63M4，SRX67-YVP71M4，SRX67-YVP80M4，SRX67-YVP90M4，SRX67-YVPEJ100M4，SRX67-YVPEJ112M4，SRX67-YVPEJ132M4，SRX67-YVPEJ63M4，SRX67-YVPEJ71M4，SRX67-YVPEJ80M4，SRX67-YVPEJ90M4，RX67SF80，RX67SF90，RX67SF100，RX67SF112，RX67SF115，RX67SF140，RX67SF160，RX67SF190。

RX69減速器廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.yayuyw.com/product/list-rxxiliejiansuji-cn.html

推薦類似型號：R69減速機
