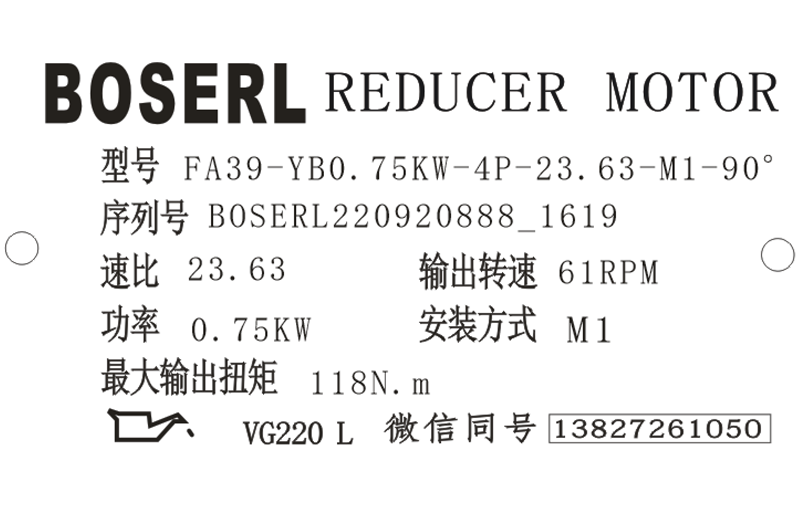

FA39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA39減速器選型樣本。

FA39-YB0.75KW-4P-23.63-M1-90°

FA：系列代號

39：減速機規格代號

YB：電機

0.75KW：電機功率

4P：電機級數

23.63：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

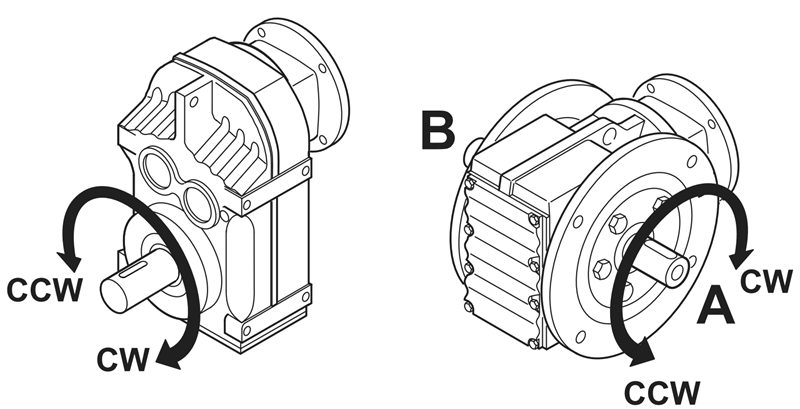

FA39減速器逆止器安裝：

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA39減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

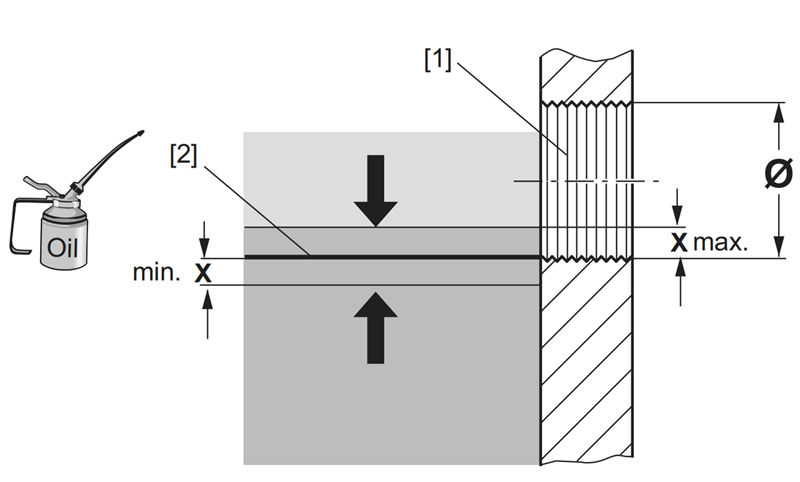

FA39減速器潤滑油檢查：

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

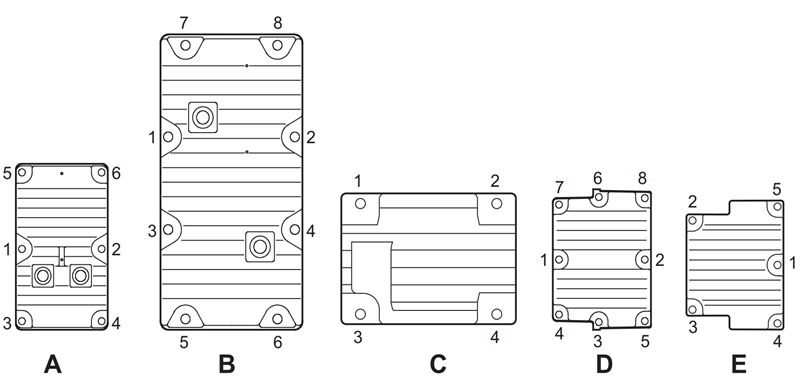

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA39減速器型號：

YQFA37-Y0.12KW，YQFA37-Y0.18KW，YQFA37-Y0.25KW，YQFA37-Y0.37KW，YQFA37-Y0.55KW，YQFA37-Y0.75KW，YQFA37-Y1.1KW，YQFA37-Y1.5KW，YQFA37-Y100M4，YQFA37-Y2.2KW，YQFA37-Y3KW，YQFA37-Y63M4，YQFA37-Y71M4，YQFA37-Y80M4，YQFA37-Y90M4，YQFA37-YB100M4，YQFA37-YB63M4，YQFA37-YB71M4，YQFA37-YB80M4，YQFA37-YB90M4，YQFA37-YDP100M4，YQFA37-YDP63M4，YQFA37-YDP71M4，YQFA37-YDP80M4，YQFA37-YDP90M4，YQFA37-YE100M4，YQFA37-YE63M4，YQFA37-YE71M4，YQFA37-YE80M4，YQFA37-YE90M4，YQFA37-YEJ100M4，YQFA37-YEJ63M4，YQFA37-YEJ71M4，YQFA37-YEJ80M4，YQFA37-YEJ90M4，YQFA37-YEJB100M4，YQFA37-YEJB63M4，YQFA37-YEJB71M4，YQFA37-YEJB80M4，YQFA37-YEJB90M4，YQFA37-YP100M4，YQFA37-YP63M4，YQFA37-YP71M4，YQFA37-YP80M4，YQFA37-YP90M4，YQFA37-YPB100M4，YQFA37-YPB63M4，YQFA37-YPB71M4，YQFA37-YPB80M4，YQFA37-YPB90M4，YQFA37-YPE100M4，YQFA37-YPE63M4，YQFA37-YPE71M4，YQFA37-YPE80M4，YQFA37-YPE90M4，YQFA37-YS100M4，YQFA37-YS63M4，YQFA37-YS71M4，YQFA37-YS80M4，YQFA37-YS90M4，YQFA37-YVB100M4，YQFA37-YVB63M4，YQFA37-YVB71M4，YQFA37-YVB80M4，YQFA37-YVB90M4，YQFA37-YVP100M4，YQFA37-YVP63M4，YQFA37-YVP71M4，YQFA37-YVP80M4，YQFA37-YVP90M4，YQFA37-YVPEJ100M4，YQFA37-YVPEJ63M4，YQFA37-YVPEJ71M4，YQFA37-YVPEJ80M4，YQFA37-YVPEJ90M4，XDFA37-Y0.12KW，XDFA37-Y0.18KW，XDFA37-Y0.25KW，XDFA37-Y0.37KW，XDFA37-Y0.55KW，XDFA37-Y0.75KW，XDFA37-Y1.1KW，XDFA37-Y1.5KW，XDFA37-Y100M4，XDFA37-Y2.2KW，XDFA37-Y3KW，XDFA37-Y63M4，XDFA37-Y71M4，XDFA37-Y80M4，XDFA37-Y90M4，XDFA37-YB100M4，XDFA37-YB63M4，XDFA37-YB71M4，XDFA37-YB80M4，XDFA37-YB90M4，XDFA37-YDP100M4，XDFA37-YDP63M4，XDFA37-YDP71M4，XDFA37-YDP80M4，XDFA37-YDP90M4，XDFA37-YE100M4，XDFA37-YE63M4，XDFA37-YE71M4，XDFA37-YE80M4，XDFA37-YE90M4，XDFA37-YEJ100M4，XDFA37-YEJ63M4，XDFA37-YEJ71M4，XDFA37-YEJ80M4，XDFA37-YEJ90M4，XDFA37-YEJB100M4，XDFA37-YEJB63M4，XDFA37-YEJB71M4，XDFA37-YEJB80M4，XDFA37-YEJB90M4，XDFA37-YP100M4，XDFA37-YP63M4，XDFA37-YP71M4，XDFA37-YP80M4，XDFA37-YP90M4，XDFA37-YPB100M4，XDFA37-YPB63M4，XDFA37-YPB71M4，XDFA37-YPB80M4，XDFA37-YPB90M4，XDFA37-YPE100M4，XDFA37-YPE63M4，XDFA37-YPE71M4，XDFA37-YPE80M4，XDFA37-YPE90M4，XDFA37-YS100M4，XDFA37-YS63M4，XDFA37-YS71M4，XDFA37-YS80M4，XDFA37-YS90M4，XDFA37-YVB100M4，XDFA37-YVB63M4，XDFA37-YVB71M4，XDFA37-YVB80M4，XDFA37-YVB90M4，XDFA37-YVP100M4，XDFA37-YVP63M4，XDFA37-YVP71M4，XDFA37-YVP80M4，XDFA37-YVP90M4，XDFA37-YVPEJ100M4，XDFA37-YVPEJ63M4，XDFA37-YVPEJ71M4，XDFA37-YVPEJ80M4，XDFA37-YVPEJ90M4，JCFA37-Y0.12KW，JCFA37-Y0.18KW，JCFA37-Y0.25KW，JCFA37-Y0.37KW，JCFA37-Y0.55KW，JCFA37-Y0.75KW，JCFA37-Y1.1KW，JCFA37-Y1.5KW，JCFA37-Y100M4，JCFA37-Y2.2KW，JCFA37-Y3KW，JCFA37-Y63M4，JCFA37-Y71M4，JCFA37-Y80M4，JCFA37-Y90M4，JCFA37-YB100M4，JCFA37-YB63M4，JCFA37-YB71M4，JCFA37-YB80M4，JCFA37-YB90M4，JCFA37-YDP100M4，JCFA37-YDP63M4，JCFA37-YDP71M4，JCFA37-YDP80M4，JCFA37-YDP90M4，JCFA37-YE100M4，JCFA37-YE63M4，JCFA37-YE71M4，JCFA37-YE80M4，JCFA37-YE90M4，JCFA37-YEJ100M4，JCFA37-YEJ63M4，JCFA37-YEJ71M4，JCFA37-YEJ80M4，JCFA37-YEJ90M4，JCFA37-YEJB100M4，JCFA37-YEJB63M4，JCFA37-YEJB71M4，JCFA37-YEJB80M4，JCFA37-YEJB90M4，JCFA37-YP100M4，JCFA37-YP63M4，JCFA37-YP71M4，JCFA37-YP80M4，JCFA37-YP90M4，JCFA37-YPB100M4，JCFA37-YPB63M4，JCFA37-YPB71M4，JCFA37-YPB80M4，JCFA37-YPB90M4，JCFA37-YPE100M4，JCFA37-YPE63M4，JCFA37-YPE71M4，JCFA37-YPE80M4，JCFA37-YPE90M4，JCFA37-YS100M4，JCFA37-YS63M4，JCFA37-YS71M4，JCFA37-YS80M4，JCFA37-YS90M4，JCFA37-YVB100M4，JCFA37-YVB63M4，JCFA37-YVB71M4，JCFA37-YVB80M4，JCFA37-YVB90M4，JCFA37-YVP100M4，JCFA37-YVP63M4，JCFA37-YVP71M4，JCFA37-YVP80M4，JCFA37-YVP90M4，JCFA37-YVPEJ100M4，JCFA37-YVPEJ63M4，JCFA37-YVPEJ71M4，JCFA37-YVPEJ80M4，JCFA37-YVPEJ90M4，F(xiàn)WA37-Y0.12KW，F(xiàn)WA37-Y0.18KW，F(xiàn)WA37-Y0.25KW，F(xiàn)WA37-Y0.37KW，F(xiàn)WA37-Y0.55KW，F(xiàn)WA37-Y0.75KW，F(xiàn)WA37-Y1.1KW，F(xiàn)WA37-Y1.5KW，F(xiàn)WA37-Y100M4，F(xiàn)WA37-Y2.2KW，F(xiàn)WA37-Y3KW，F(xiàn)WA37-Y63M4，F(xiàn)WA37-Y71M4，F(xiàn)WA37-Y80M4，F(xiàn)WA37-Y90M4，F(xiàn)WA37-YB100M4，F(xiàn)WA37-YB63M4，F(xiàn)WA37-YB71M4，F(xiàn)WA37-YB80M4，F(xiàn)WA37-YB90M4，F(xiàn)WA37-YDP100M4，F(xiàn)WA37-YDP63M4，F(xiàn)WA37-YDP71M4，F(xiàn)WA37-YDP80M4，F(xiàn)WA37-YDP90M4，F(xiàn)WA37-YE100M4，F(xiàn)WA37-YE63M4，F(xiàn)WA37-YE71M4，F(xiàn)WA37-YE80M4，F(xiàn)WA37-YE90M4，F(xiàn)WA37-YEJ100M4，F(xiàn)WA37-YEJ63M4，F(xiàn)WA37-YEJ71M4，F(xiàn)WA37-YEJ80M4，F(xiàn)WA37-YEJ90M4，F(xiàn)WA37-YEJB100M4，F(xiàn)WA37-YEJB63M4，F(xiàn)WA37-YEJB71M4，F(xiàn)WA37-YEJB80M4，F(xiàn)WA37-YEJB90M4，F(xiàn)WA37-YP100M4，F(xiàn)WA37-YP63M4，F(xiàn)WA37-YP71M4，F(xiàn)WA37-YP80M4，F(xiàn)WA37-YP90M4，F(xiàn)WA37-YPB100M4，F(xiàn)WA37-YPB63M4，F(xiàn)WA37-YPB71M4，F(xiàn)WA37-YPB80M4，F(xiàn)WA37-YPB90M4，F(xiàn)WA37-YPE100M4，F(xiàn)WA37-YPE63M4，F(xiàn)WA37-YPE71M4，F(xiàn)WA37-YPE80M4，F(xiàn)WA37-YPE90M4，F(xiàn)WA37-YS100M4，F(xiàn)WA37-YS63M4，F(xiàn)WA37-YS71M4，F(xiàn)WA37-YS80M4，F(xiàn)WA37-YS90M4，F(xiàn)WA37-YVB100M4，F(xiàn)WA37-YVB63M4，F(xiàn)WA37-YVB71M4，F(xiàn)WA37-YVB80M4，F(xiàn)WA37-YVB90M4，F(xiàn)WA37-YVP100M4，F(xiàn)WA37-YVP63M4，F(xiàn)WA37-YVP71M4，F(xiàn)WA37-YVP80M4，F(xiàn)WA37-YVP90M4，F(xiàn)WA37-YVPEJ100M4，F(xiàn)WA37-YVPEJ63M4，F(xiàn)WA37-YVPEJ71M4，F(xiàn)WA37-YVPEJ80M4，F(xiàn)WA37-YVPEJ90M4，F(xiàn)A39-Y0.12KW，F(xiàn)A39-Y0.18KW，F(xiàn)A39-Y0.25KW，F(xiàn)A39-Y0.37KW，F(xiàn)A39-Y0.55KW，F(xiàn)A39-Y0.75KW，F(xiàn)A39-Y1.1KW，F(xiàn)A39-Y1.5KW，F(xiàn)A39-Y100M4，F(xiàn)A39-Y2.2KW，F(xiàn)A39-Y3KW，F(xiàn)A39-Y63M4，F(xiàn)A39-Y71M4，F(xiàn)A39-Y80M4，F(xiàn)A39-Y90M4，F(xiàn)A39-YB100M4，F(xiàn)A39-YB63M4，F(xiàn)A39-YB71M4，F(xiàn)A39-YB80M4，F(xiàn)A39-YB90M4，F(xiàn)A39-YDP100M4，F(xiàn)A39-YDP63M4，F(xiàn)A39-YDP71M4，F(xiàn)A39-YDP80M4，F(xiàn)A39-YDP90M4，F(xiàn)A39-YE100M4，F(xiàn)A39-YE63M4，F(xiàn)A39-YE71M4，F(xiàn)A39-YE80M4，F(xiàn)A39-YE90M4，F(xiàn)A39-YEJ100M4，F(xiàn)A39-YEJ63M4，F(xiàn)A39-YEJ71M4，F(xiàn)A39-YEJ80M4，F(xiàn)A39-YEJ90M4，F(xiàn)A39-YEJB100M4，F(xiàn)A39-YEJB63M4，F(xiàn)A39-YEJB71M4，F(xiàn)A39-YEJB80M4，F(xiàn)A39-YEJB90M4，F(xiàn)A39-YP100M4，F(xiàn)A39-YP63M4，F(xiàn)A39-YP71M4，F(xiàn)A39-YP80M4，F(xiàn)A39-YP90M4，F(xiàn)A39-YPB100M4，F(xiàn)A39-YPB63M4，F(xiàn)A39-YPB71M4，F(xiàn)A39-YPB80M4，F(xiàn)A39-YPB90M4，F(xiàn)A39-YPE100M4，F(xiàn)A39-YPE63M4，F(xiàn)A39-YPE71M4，F(xiàn)A39-YPE80M4，F(xiàn)A39-YPE90M4，F(xiàn)A39-YS100M4，F(xiàn)A39-YS63M4，F(xiàn)A39-YS71M4，F(xiàn)A39-YS80M4，F(xiàn)A39-YS90M4，F(xiàn)A39-YVB100M4，F(xiàn)A39-YVB63M4，F(xiàn)A39-YVB71M4，F(xiàn)A39-YVB80M4，F(xiàn)A39-YVB90M4，F(xiàn)A39-YVP100M4，F(xiàn)A39-YVP63M4，F(xiàn)A39-YVP71M4，F(xiàn)A39-YVP80M4，F(xiàn)A39-YVP90M4，F(xiàn)A39-YVPEJ100M4，F(xiàn)A39-YVPEJ63M4，F(xiàn)A39-YVPEJ71M4，F(xiàn)A39-YVPEJ80M4，F(xiàn)A39-YVPEJ90M4，F(xiàn)A37SF80，F(xiàn)A37SF90，F(xiàn)A37SF100，F(xiàn)A37SF112，F(xiàn)A37SF115，F(xiàn)A37SF140，F(xiàn)A37SF160，F(xiàn)A37SF190。
